Outline Drawing
ContRoller-Types
| Part Number | 47DEXG656B (BT-40) Sensor Motor AIS |
|---|---|
| Time Interval For Cutter | 1.5sec(6kg/side) |
| Tool Buckling Angles | 60°~90°(based on customer requirements) |
| Cutter Pulling Strokechange | 115mm-MAX(We can customize strokes according to different types of tool holders) |
| Maximum Loading | 8kg |
| Signal Specifications | Proximity Switch PNP-NOx3~4 |
| Driving Horse Power | 1HP |
| Weight Of The Product | 120kg(with oil) |
| Accuracy |
Overlapping accuracy 3" Horizontal Accuracy 0.2mm |
| Part Number | 47DEXH654A (BT-40)Horizontal |
|---|---|
| Time Interval For Cutter | Please refer to the A407 speed ratio loading table |
| Tool Buckling Angles | 60°~90°(based on customer requirements) |
| Cutter Pulling Strokechange | 115mm-MAX(We can customize strokes according to different types of tool holders) |
| Maximum Loading | 8kg |
| Signal Specifications | Decoder |
| Driving Horse Power | 1HP |
| Weight Of The Product | 130kg(with oil) |
| Accuracy |
Overlapping accuracy 3" Horizontal Accuracy 0.2mm |

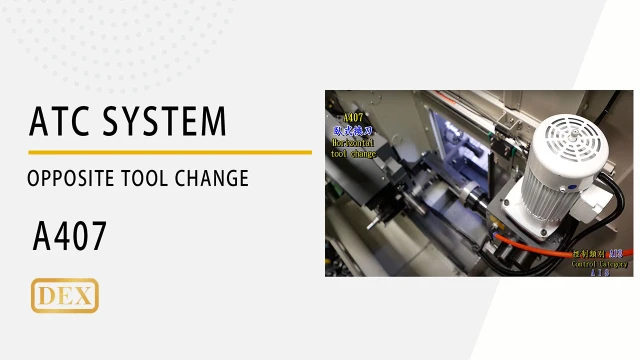

| Part Number | 47DEXH654A (BT-40)HorizontalOpposite Tool Change |
|---|---|
| Time Interval For Cutter | Please refer to the A407 speed ratio loading table |
| Tool Buckling Angles | 60°~90°(based on customer requirements) |
| Cutter Pulling Strokechange | 115mm-MAX(We can customize strokes according to different types of tool holders) |
| Maximum Loading | 8kg |
| Signal Specifications | Proximity Switch PNP-NOx3~4 |
| Driving Horse Power | 1HP |
| Weight Of The Product | 130kg(with oil) |
| Accuracy |
Overlapping accuracy 3" Horizontal Accuracy 0.2mm |
Movement Timing Illustration
AIS
Angle for cutter change can be defined per customer's need (60°~ 90°)
We can customize strokes according to different types of tool holders
Wheel Sensor
Angle for cutter change can be defined per customer's need (60°~ 90°)
We can customize strokes according to different types of tool holders
A407 Instant Loading Diagram
Tool Change Arm T-to-T Distance/ Tool Arm Weight Reference
| Tool Weight Bilateral Loading of Tools |
Motor Frequency | Compatible with 1 HP motors |
ATC Time Interval For Cutter |
|---|---|---|---|
| 4Kg*2 | 50Hz | 1:7 | 1.36 sec |
| 60Hz | 1:7 | 1.14 sec | |
| 5Kg*2 | 50Hz | 1:7 | 1.36 sec |
| 60Hz | 1:7 | 1.14 sec | |
| 6Kg*2 | 50Hz | 1:7 | 1.36 sec |
| 60Hz | 1:7 | 1.14 sec | |
| 7Kg*2 | 50Hz | 1:7 | 1.36 sec |
| 60Hz | 1:7 | 1.14 sec | |
| 8Kg*2 | 50Hz | 1:7 | 1.36 sec |
| 60Hz | 1:7 | 1.14 sec |
| Tool Weight Bilateral Loading of Tools |
Motor Frequency | Compatible with 1 HP motors |
ATC Time Interval For Cutter |
|---|---|---|---|
| 4Kg*2 | 50Hz | 1:7 | 1.36 sec |
| 60Hz | 1:7 | 1.14 sec | |
| 5Kg*2 | 50Hz | 1:7 | 1.36 sec |
| 60Hz | 1:7 | 1.14 sec | |
| 6Kg*2 | 50Hz | 1:7 | 1.36 sec |
| 60Hz | 1:7 | 1.14 sec | |
| 7Kg*2 | 50Hz | 1:7 | 1.36 sec |
| 60Hz | 1:7 | 1.14 sec | |
| 8Kg*2 | 50Hz | 1:7 | 1.36 sec |
| 60Hz | 1:7 | 1.14 sec |
| Tool Weight Bilateral Loading of Tools |
Motor Frequency | Compatible with 1 HP motors |
ATC Time Interval For Cutter |
|---|---|---|---|
| 4Kg*2 | 50Hz | 1:7 | 1.36 sec |
| 60Hz | 1:7 | 1.14 sec | |
| 5Kg*2 | 50Hz | 1:7 | 1.36 sec |
| 60Hz | 1:7 | 1.14 sec | |
| 6Kg*2 | 50Hz | 1:7 | 1.36 sec |
| 60Hz | 1:8 | 1.31 sec | |
| 7Kg*2 | 50Hz | 1:7 | 1.36 sec |
| 60Hz | 1:8 | 1.31 sec | |
| 8Kg*2 | 50Hz | 1:7 | 1.36 sec |
| 60Hz | 1:8 | 1.31 sec |
| Tool Weight Bilateral Loading of Tools |
Motor Frequency | Compatible with 1 HP motors |
ATC Time Interval For Cutter |
|---|---|---|---|
| 4Kg*2 | 50Hz | 1:7 | 1.36 sec |
| 60Hz | 1:8 | 1.31 sec | |
| 5Kg*2 | 50Hz | 1:7 | 1.36 sec |
| 60Hz | 1:8 | 1.31 sec | |
| 6Kg*2 | 50Hz | 1:7 | 1.36 sec |
| 60Hz | 1:8 | 1.31 sec | |
| 7Kg*2 | 50Hz | 1:7 | 1.36 sec |
| 60Hz | 1:9 | 1.47 sec | |
| 8Kg*2 | 50Hz | 1:8 | 1.55 sec |
| 60Hz | 1:9 | 1.47 sec |
| Tool Weight Bilateral Loading of Tools |
Motor Frequency | Compatible with 1 HP motors |
ATC Time Interval For Cutter |
|---|---|---|---|
| 4Kg*2 | 50Hz | 1:7 | 1.36 sec |
| 60Hz | 1:8 | 1.31 sec | |
| 5Kg*2 | 50Hz | 1:7 | 1.36 sec |
| 60Hz | 1:9 | 1.47 sec | |
| 6Kg*2 | 50Hz | 1:8 | 1.55 sec |
| 60Hz | 1:9 | 1.47 sec | |
| 7Kg*2 | 50Hz | 1:8 | 1.55 sec |
| 60Hz | 1:10 | 1.64 sec | |
| 8Kg*2 | 50Hz | 1:8 | 1.55 sec |
| 60Hz | 1:10 | 1.64 sec |
| Tool Weight Bilateral Loading of Tools |
Motor Frequency | Compatible with 1 HP motors |
ATC Time Interval For Cutter |
|---|---|---|---|
| 4Kg*2 | 50Hz | 1:8 | 1.55 sec |
| 60Hz | 1:9 | 1.47 sec | |
| 5Kg*2 | 50Hz | 1:8 | 1.55 sec |
| 60Hz | 1:9 | 1.47 sec | |
| 6Kg*2 | 50Hz | 1:8 | 1.55 sec |
| 60Hz | 1:10 | 1.64 sec | |
| 7Kg*2 | 50Hz | 1:9 | 1.75 sec |
| 60Hz | 1:10 | 1.64 sec | |
| 8Kg*2 | 50Hz | 1:9 | 1.75 sec |
| 60Hz | 1:12 | 1.96 sec |
| Tool Weight Bilateral Loading of Tools |
Motor Frequency | Compatible with 1 HP motors |
ATC Time Interval For Cutter |
|---|---|---|---|
| 4Kg*2 | 50Hz | 1:8 | 1.55 sec |
| 60Hz | 1:10 | 1.64 sec | |
| 5Kg*2 | 50Hz | 1:9 | 1.75 sec |
| 60Hz | 1:10 | 1.64 sec | |
| 6Kg*2 | 50Hz | 1:9 | 1.75 sec |
| 60Hz | 1:12 | 1.96 sec | |
| 7Kg*2 | 50Hz | 1:10 | 1.94 sec |
| 60Hz | 1:12 | 1.96 sec | |
| 8Kg*2 | 50Hz | 1:10 | 1.94 sec |
| 60Hz | 1:12 | 1.96 sec |
Tool Change Arm T-to-T Distance/ Tool Arm Weight Reference
| Tool Weight Bilateral Loading of Tools |
Motor Frequency | Compatible with 1 HP motors |
ATC Time Interval For Cutter |
|---|---|---|---|
| 4Kg*2 | 50Hz | 1:9 | 1.75 sec |
| 60Hz | 1:10 | 1.64 sec | |
| 5Kg*2 | 50Hz | 1:9 | 1.75 sec |
| 60Hz | 1:12 | 1.96 sec | |
| 6Kg*2 | 50Hz | 1:10 | 1.94 sec |
| 60Hz | 1:12 | 1.96 sec | |
| 7Kg*2 | 50Hz | 1:10 | 1.94 sec |
| 60Hz | 1:12 | 1.96 sec | |
| 8Kg*2 | 50Hz | 1:12 | 2.33 sec |
| 60Hz | 1:15 | 2.45 sec |
| Tool Weight Bilateral Loading of Tools |
Motor Frequency | Compatible with 1 HP motors |
ATC Time Interval For Cutter |
|---|---|---|---|
| 4Kg*2 | 50Hz | 1:10 | 1.94 sec |
| 60Hz | 1:12 | 1.96 sec | |
| 5Kg*2 | 50Hz | 1:10 | 1.94 sec |
| 60Hz | 1:12 | 1.96 sec | |
| 6Kg*2 | 50Hz | 1:12 | 2.33 sec |
| 60Hz | 1:15 | 2.45 sec | |
| 7Kg*2 | 50Hz | 1:12 | 2.33 sec |
| 60Hz | 1:15 | 2.45 sec | |
| 8Kg*2 | 50Hz | 1:12 | 2.33 sec |
| 60Hz | 1:15 | 2.45 sec |
| Tool Weight Bilateral Loading of Tools |
Motor Frequency | Compatible with 1 HP motors |
ATC Time Interval For Cutter |
|---|---|---|---|
| 4Kg*2 | 50Hz | 1:12 | 2.33 sec |
| 60Hz | 1:12 | 1.96 sec | |
| 5Kg*2 | 50Hz | 1:12 | 2.33 sec |
| 60Hz | 1:15 | 2.45 sec | |
| 6Kg*2 | 50Hz | 1.12 | 2.33 sec |
| 60Hz | 1:15 | 2.45 sec | |
| 7Kg*2 | 50Hz | 1:12 | 2.33 sec |
| 60Hz | 1:15 | 2.45 sec | |
| 8Kg*2 | 50Hz | 1:15 | 2.91 sec |
| 60Hz | 1:15 | 2.45 sec |
| Tool Weight Bilateral Loading of Tools |
Motor Frequency | Compatible with 1 HP motors |
ATC Time Interval For Cutter |
|---|---|---|---|
| 4Kg*2 | 50Hz | 1:12 | 2.33 sec |
| 60Hz | 1:15 | 2.45 sec | |
| 5Kg*2 | 50Hz | 1:12 | 2.33 sec |
| 60Hz | 1:15 | 2.45 sec | |
| 6Kg*2 | 50Hz | 1:12 | 2.33 sec |
| 60Hz | 1:15 | 2.45 sec | |
| 7Kg*2 | 50Hz | 1:15 | 2.91 sec |
| 60Hz | 1:15 | 2.45 sec | |
| 8Kg*2 | 50Hz | 1:15 | 2.91 sec |
| 60Hz | 1:20 | 3.27 sec |
| Tool Weight Bilateral Loading of Tools |
Motor Frequency | Compatible with 1 HP motors |
ATC Time Interval For Cutter |
|---|---|---|---|
| 4Kg*2 | 50Hz | 1:12 | 2.33 sec |
| 60Hz | 1:15 | 2.45 sec | |
| 5Kg*2 | 50Hz | 1:15 | 2.91 sec |
| 60Hz | 1:15 | 2.45 sec | |
| 6Kg*2 | 50Hz | 1:15 | 2.91 sec |
| 60Hz | 1:20 | 3.27 sec | |
| 7Kg*2 | 50Hz | 1:15 | 2.91 sec |
| 60Hz | 1:20 | 3.27 sec | |
| 8Kg*2 | 50Hz | 1:15 | 2.91 sec |
| 60Hz | 1:20 | 3.27 sec |
| Tool Weight Bilateral Loading of Tools |
Motor Frequency | Compatible with 1 HP motors |
ATC Time Interval For Cutter |
|---|---|---|---|
| 4Kg*2 | 50Hz | 1:15 | 2.91 sec |
| 60Hz | 1:15 | 2.45 sec | |
| 5Kg*2 | 50Hz | 1:15 | 2.91 sec |
| 60Hz | 1:20 | 3.27 sec | |
| 6Kg*2 | 50Hz | 1:15 | 2.91 sec |
| 60Hz | 1:20 | 3.27 sec | |
| 7Kg*2 | 50Hz | 1:15 | 2.91 sec |
| 60Hz | 1:20 | 3.27 sec | |
| 8Kg*2 | 50Hz | 1:15 | 2.91 sec |
| 60Hz | 1:20 | 3.27 sec |
