bt405-horizontal

ATC Systems

BT40 Series - HorizontalA405 - Horizontal

Outline Drawing
renishaw-acu250-r-asis-corrected
renishaw-acu250-r-asis-corrected
renishaw-acu250-r-asis-corrected
video-a405-250208

Horizontal Tool Change / AIS

ContRoller-Types
Part Number 45DEXA132C (BT-40)Horizontal
Time Interval For Cutter Please refer to the A405 speed ratio loading table
Tool Buckling Angles 60°~90°(based on customer requirements)
Cutter Pulling Strokechange 115mm-MAX(We can customize strokes according to different types of tool holders)
Maximum Loading 8kg
Signal Specifications Decoder
Driving Horse Power 1HP
Weight Of The Product 180kg(with oil)
Accuracy

Overlapping accuracy 3"

Horizontal Accuracy 0.2mm
Part Number 45DEXA132C (BT-40)Horizontal
Time Interval For Cutter Please refer to the A405 speed ratio loading table
Tool Buckling Angles 60°~90°(based on customer requirements)
Cutter Pulling Strokechange 115mm-MAX(We can customize strokes according to different types of tool holders)
Maximum Loading 8kg
Signal Specifications Decoder
Driving Horse Power 1HP
Weight Of The Product 180kg(with oil)
Accuracy

Overlapping accuracy 3"

Horizontal Accuracy 0.2mm
Part Number 45DEXA132C (BT-40)Horizontal
Time Interval For Cutter Please refer to the A405 speed ratio loading table
Tool Buckling Angles 60°~90°(based on customer requirements)
Cutter Pulling Strokechange 115mm-MAX(We can customize strokes according to different types of tool holders)
Maximum Loading 8kg
Signal Specifications Proximity Switch PNP-NOx3~4
Driving Horse Power 1HP
Weight Of The Product 180kg(with oil)
Accuracy

Overlapping accuracy 3"

Horizontal Accuracy 0.2mm

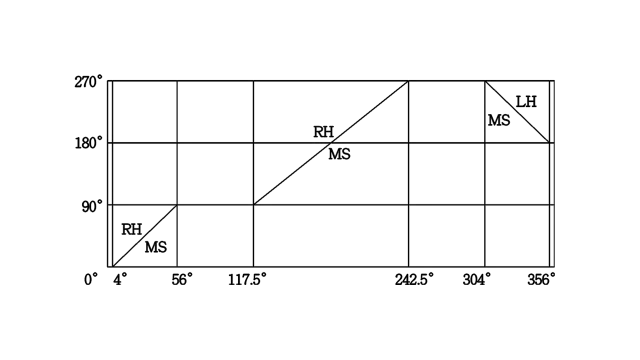

Movement Timing Illustration
Angle for cutter change can be defined per customer's need (60°~ 90°)
Angle for cutter change can be defined per customer's need (60°~ 90°)

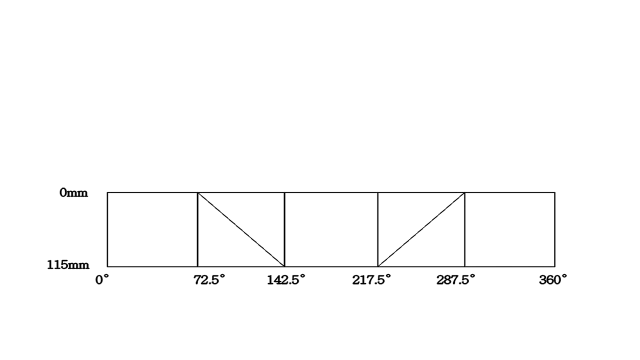

We can customize strokes according to different types of tool holders
We can customize strokes according to different types of tool holders
A405 Instant Loading Diagram
Tool Change Arm T-to-T Distance/ Tool Arm Weight Reference
Tool Weight
Bilateral Loading of Tools		 Motor Frequency Belts Compatible with
1HP		 ATC Time Interval
For Cutter
4Kgx2 50Hz 30:48 1.66 sec
60Hz 30:48 1.39 sec
5Kgx2 50Hz 30:48 1.66 sec
60Hz 30:48 1.39 sec
6Kgx2 50Hz 30:48 1.66 sec
60Hz 30:48 1.39 sec
7Kgx2 50Hz 30:48 1.66 sec
60Hz 30:48 1.39 sec
8Kgx2 50Hz 30:48 1.66 sec
60Hz 30:48 1.39 sec
Tool Weight
Bilateral Loading of Tools		 Motor Frequency Belts Compatible with
1HP		 ATC Time Interval
For Cutter
4Kgx2 50Hz 30:48 1.66 sec
60Hz 30:48 1.39 sec
5Kgx2 50Hz 30:48 1.66 sec
60Hz 30:48 1.39 sec
6Kgx2 50Hz 30:48 1.66 sec
60Hz 30:48 1.39 sec
7Kgx2 50Hz 30:48 1.66 sec
60Hz 30:48 1.39 sec
8Kgx2 50Hz 30:48 1.66 sec
60Hz 30:48 1.39 sec
Tool Weight
Bilateral Loading of Tools		 Motor Frequency Belts Compatible with
1HP		 ATC Time Interval
For Cutter
4Kgx2 50Hz 30:48 1.66 sec
60Hz 30:48 1.39 sec
5Kgx2 50Hz 30:48 1.66 sec
60Hz 30:48 1.39 sec
6Kgx2 50Hz 30:48 1.66 sec
60Hz 30:48 1.39 sec
7Kgx2 50Hz 30:48 1.66 sec
60Hz 30:48 1.39 sec
8Kgx2 50Hz 30:48 1.66 sec
60Hz 30:48 1.39 sec
Tool Weight
Bilateral Loading of Tools		 Motor Frequency Belts Compatible with
1HP		 ATC Time Interval
For Cutter
4Kgx2 50Hz 30:48 1.66 sec
60Hz 30:48 1.39 sec
5Kgx2 50Hz 30:48 1.66 sec
60Hz 30:48 1.39 sec
6Kgx2 50Hz 30:48 1.66 sec
60Hz 30:48 1.39 sec
7Kgx2 50Hz 30:48 1.66 sec
60Hz 30:48 1.39 sec
8Kgx2 50Hz 30:48 1.66 sec
60Hz 27:50 1.61 sec
Tool Weight
Bilateral Loading of Tools		 Motor Frequency Belts Compatible with
1HP		 ATC Time Interval
For Cutter
4Kgx2 50Hz 30:48 1.66 sec
60Hz 30:48 1.39 sec
5Kgx2 50Hz 30:48 1.66 sec
60Hz 30:48 1.39 sec
6Kgx2 50Hz 30:48 1.66 sec
60Hz 27:50 1.61 sec
7Kgx2 50Hz 30:48 1.66 sec
60Hz 27:50 1.61 sec
8Kgx2 50Hz 30:48 1.66 sec
60Hz 27:50 1.61 sec
Tool Weight
Bilateral Loading of Tools		 Motor Frequency Belts Compatible with
1HP		 ATC Time Interval
For Cutter
4Kgx2 50Hz 30:48 1.66 sec
60Hz 30:48 1.39 sec
5Kgx2 50Hz 30:48 1.66 sec
60Hz 27:50 1.61 sec
6Kgx2 50Hz 30:48 1.66 sec
60Hz 27:50 1.61 sec
7Kgx2 50Hz 30:48 1.66 sec
60Hz 25:50 1.7 sec
8Kgx2 50Hz 27:50 1.92 sec
60Hz 25:50 1.7 sec
Tool Weight
Bilateral Loading of Tools		 Motor Frequency Belts Compatible with
1HP		 ATC Time Interval
For Cutter
4Kgx2 50Hz 30:48 1.66 sec
60Hz 27:50 1.61 sec
5Kgx2 50Hz 30:48 1.66 sec
60Hz 27:50 1.61 sec
6Kgx2 50Hz 27:50 1.92 sec
60Hz 25:50 1.7 sec
7Kgx2 50Hz 27:50 1.92 sec
60Hz 25:56 1.95 sec
8Kgx2 50Hz 27:50 1.92 sec
60Hz 25:56 1.95 sec
Tool Change Arm T-to-T Distance/ Tool Arm Weight Reference
Tool Weight
Bilateral Loading of Tools		 Motor Frequency Belts Compatible with
1HP		 ATC Time Interval
For Cutter
4Kgx2 50Hz 30:48 1.66 sec
60Hz 25:56 1.95 sec
5Kgx2 50Hz 27:50 1.92 sec
60Hz 25:56 1.95 sec
6Kgx2 50Hz 27:50 1.92 sec
60Hz 25:56 1.95 sec
7Kgx2 50Hz 27:50 1.92 sec
60Hz 25:56 1.95 sec
8Kgx2 50Hz 25:50 2.1 sec
Tool Weight
Bilateral Loading of Tools		 Motor Frequency Belts Compatible with
1HP		 ATC Time Interval
For Cutter
4Kgx2 50Hz 27:50 1.92 sec
60Hz 25:56 1.95 sec
5Kgx2 50Hz 25:50 2.1 sec
60Hz 25:56 1.95 sec
6Kgx2 50Hz 25:50 2.1 sec
7Kgx2 50Hz 25:56 2.31 sec
8Kgx2 50Hz 25:56 2.31 sec
Tool Weight
Bilateral Loading of Tools		 Motor Frequency Belts Compatible with
1HP		 ATC Time Interval
For Cutter
4Kgx2 50Hz 25:50 2.1 sec
5Kgx2 50Hz 25:50 2.1 sec
6Kgx2 50Hz 25:56 2.31 sec
7Kgx2 50Hz 25:56 2.31 sec
