4axis Rotary Tilting Tables

RD Series (R/L)

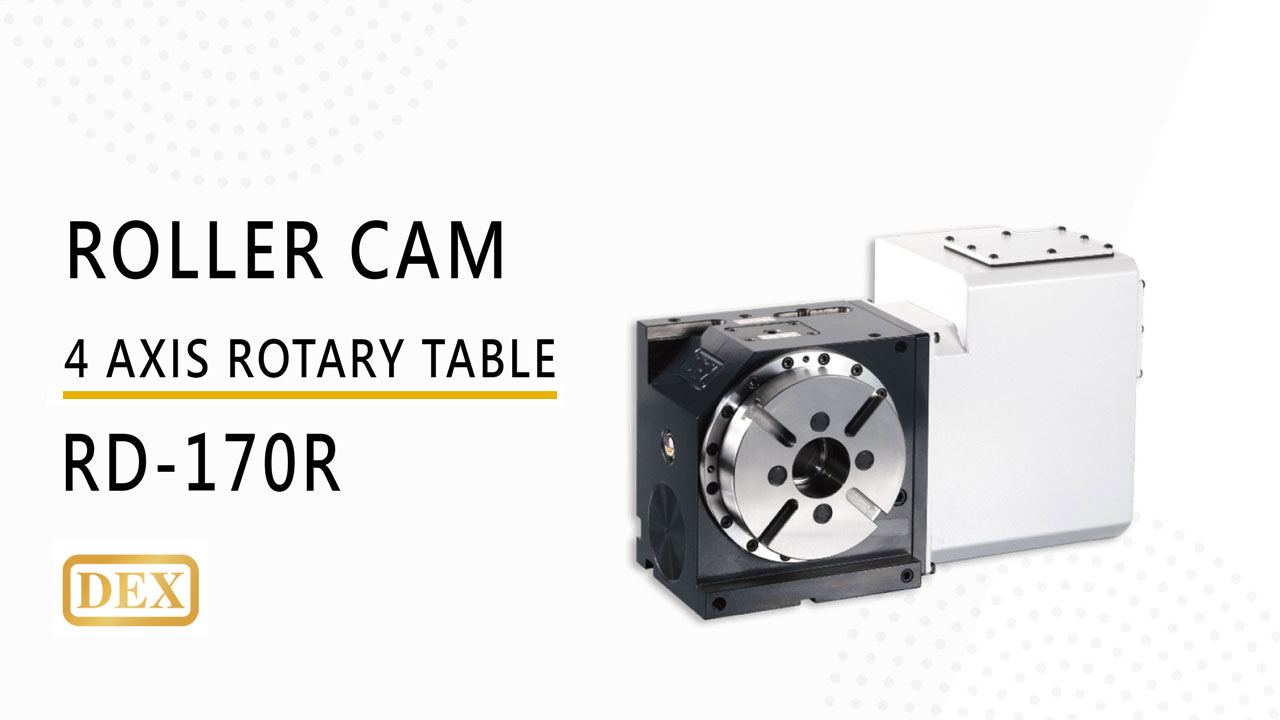

RD170R

The RD Series (R/L) 4-axis Rotary Tilting Tables, manufactured by DEX, exemplified by the RD170R model, redefine precision machining.

These rotary indexing tables are expertly crafted to accommodate workpieces with loading weights of approximately 200kg, thanks to their loading block size of 570mm x 240mm.

With innovative rotary indexing table design, these tables offer exceptional versatility and accuracy, making them indispensable tools for a wide range of machining applications. They represent the pinnacle of engineering in the field of rotary tables, promising enhanced efficiency and precision in your machining processes.

As rotary indexing table manufacturer, we take pride in delivering cutting-edge solutions that empower industries to achieve the highest standards of precision and productivity.

Specifications

ITEM		UNIT		RD170R
Table diameter		mm		170
Center height		mm		135/160
Center bore	Front spindle hole	mm		55H7
Center bore	Through hole	mm		45H7
T slot width		mm		12H7
Guide block width		mm(h7)		14h7
Servo Motor		FANUC	α	αiF4	□130
		FANUC	β	βiS8	□130
		Mitsubushi		HF-104T	□130
Motor interface		Siemens		1FK7060	□126
Gear ratio		--		1/45 (1/36)
Table max.		r.p.m.		83 (100)
Degree mini.		Degree		0.001
Accuracy		Second		16
Forward & Reverse repet.accuracy		Second		4
Allowable cutting torque		【kgf-m】		【39】
Allowable cutting torque		N-m		387
Clamp system		Pneumatic/ Hydraulic		Pneumatic/ Hydraulic
Clamp output at brake		kg-cm²		6/20
Clamp output torque at brake		【kgf-m】		【26/80】
Clamp output torque at brake		N-m		254/784
Allowable work weight	(Radial) Straight	kg		90
	(Tailstock applied)	kg		180
	(Axial) Flat	kg		180
Allowable load (table clamped)		F	Kgf	2100
		F	N	20580
		FxL	Kgf-m	【26/80】
		FxL	N-m	254/784
		FxL	Kgf-m	122
		FxL	N-m	1195
Weight		kg		60
Allowable inertia force		kg-m²		1.4
