ATC Systems

BT40 SeriesBT40# Servo-type

Outline Drawing
Outline Drawing - A401

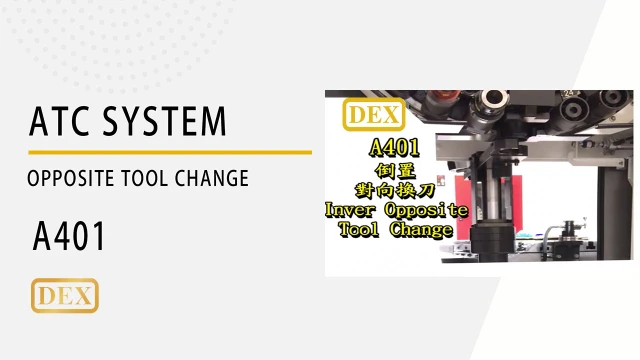

video-a401-250208

Opposite / Wheel Sensor / A401

ContRoller-Types
Part Number 41DEXE652B (BT-40)Opposite Tool Change
Time Interval For Cutter Please refer to the A401 speed ratio loading table
Tool Buckling Angles 60°~90°(based on customer requirements)
Cutter Pulling Strokechange 115mm-MAX(We can customize strokes according to different types of tool holders)
Maximum Loading 7kg
Signal Specifications Proximity Switch PNP-NOx3~4
Driving Horse Power 3/4HP
Weight Of The Product 141kg
Accuracy

Overlapping accuracy 4"

Horizontal Accuracy 0.2mm
Movement Timing Illustration
Angle for cutter change can be defined per customer's need (60°~ 90°)
Angle for cutter change can be defined per customer's need (60°~ 90°)
We can customize strokes according to different types of tool holders
We can customize strokes according to different types of tool holders
A401 Instant Loading Diagram
Tool Change Arm T-to-T Distance/ Tool Arm Weight Reference
Tool Weight
Bilateral Loading of Tools		 Motor Frequency Belts Compatible with
3/4HP		 ATC Time Interval
For Cutter
4Kg*2 50Hz 46:39 2.1 sec
60Hz 46:39 1.77 sec
5Kg*2 50Hz 46:39 2.1 sec
60Hz 46:39 1.77 sec
6Kg*2 50Hz 46:39 2.1 sec
60Hz 46:39 1.77 sec
7Kg*2 50Hz 46:39 2.1 sec
60Hz 46:39 1.77 sec
Tool Weight
Bilateral Loading of Tools		 Motor Frequency Belts Compatible with
3/4HP		 ATC Time Interval
For Cutter
4Kg*2 50Hz 46:39 2.1 sec
60Hz 46:39 1.77 sec
5Kg*2 50Hz 46:39 2.1 sec
60Hz 46:39 1.77 sec
6Kg*2 50Hz 46:39 2.1 sec
60Hz 46:39 1.77 sec
7Kg*2 50Hz 46:39 2.1 sec
60Hz 46:39 1.77 sec
Tool Weight
Bilateral Loading of Tools		 Motor Frequency Belts Compatible with
3/4HP		 ATC Time Interval
For Cutter
4Kg*2 50Hz 46:39 2.1 sec
60Hz 46:39 1.77 sec
5Kg*2 50Hz 46:39 2.1 sec
60Hz 46:39 1.77 sec
6Kg*2 50Hz 46:39 2.1 sec
60Hz 46:39 1.77 sec
7Kg*2 50Hz 46:39 2.1 sec
60Hz 46:39 1.77 sec
Tool Weight
Bilateral Loading of Tools		 Motor Frequency Belts Compatible with
3/4HP		 ATC Time Interval
For Cutter
4Kg*2 50Hz 46:39 2.1 sec
60Hz 46:39 1.77 sec
5Kg*2 50Hz 46:39 2.1 sec
60Hz 46:39 1.77 sec
6Kg*2 50Hz 46:39 2.1 sec
60Hz 42:42 2.09 sec
7Kg*2 50Hz 46:39 2.1 sec
60Hz 42:42 2.09 sec
Tool Change Arm T-to-T Distance/ Tool Arm Weight Reference
Tool Weight
Bilateral Loading of Tools		 Motor Frequency Belts Compatible with
3/4HP		 ATC Time Interval
For Cutter
4Kg*2 50Hz 46:39 2.1 sec
60Hz 46:39 1.77 sec
5Kg*2 50Hz 46:39 2.1 sec
60Hz 42:42 2.09 sec
6Kg*2 50Hz 46:39 2.1 sec
60Hz 42:42 2.09 sec
7Kg*2 50Hz 46:39 2.1 sec
60Hz 42:42 2.09 sec
Tool Weight
Bilateral Loading of Tools		 Motor Frequency Belts Compatible with
3/4HP		 ATC Time Interval
For Cutter
4Kg*2 50Hz 46:39 2.1 sec
60Hz 42:42 2.09 sec
5Kg*2 50Hz 46:39 2.1 sec
60Hz 42:42 2.09 sec
6Kg*2 50Hz 46:39 2.1 sec
60Hz 42:42 2.09 sec
7Kg*2 50Hz 46:39 2.1 sec
60Hz 42:42 2.09 sec
Tool Weight
Bilateral Loading of Tools		 Motor Frequency Belts Compatible with
3/4HP		 ATC Time Interval
For Cutter
4Kg*2 50Hz 46:39 2.1 sec
60Hz 42:42 2.09 sec
5Kg*2 50Hz 46:39 2.1 sec
60Hz 42:42 2.09 sec
6Kg*2 50Hz 46:39 2.1 sec
60Hz 42:42 2.09 sec
7Kg*2 50Hz 42:42 2.48 sec
60Hz 38:46 2.53 sec
Tool Weight
Bilateral Loading of Tools		 Motor Frequency Belts Compatible with
3/4HP		 ATC Time Interval
For Cutter
4Kg*2 50Hz 42:42 2.48 sec
60Hz 38:46 2.53 sec
5Kg*2 50Hz 42:42 2.48 sec
60Hz 38:46 2.53 sec
6Kg*2 50Hz 42:42 2.48 sec
60Hz 38:46 2.53 sec
7Kg*2 50Hz 42:42 2.48 sec
60Hz 38:46 2.53 sec
