Intermittent Precision Index

DSU Combined / Separated Lifting Type

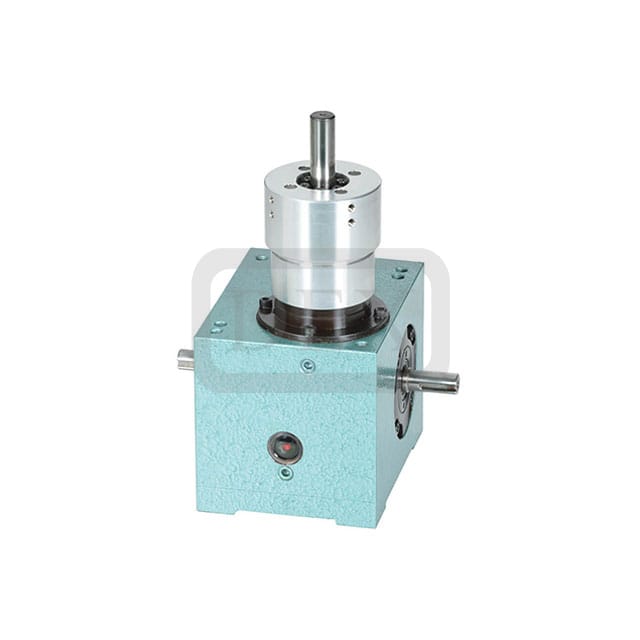

4.5DSU

Applications Lifting/Indexing Combined Type: Lifting motion
with continuous/reciprocating pick-up or insertion.

Lifting/Indexing Combined Type: Running disc
with continuous/reciprocating shaft lifting for
pickup or insertion.
Properties The complex indexing & lifting process is
performed by a combination of indexing cam and
lifting flat cam. Lowest starting point tolerance of
±0.01mm. Indexing accuracy of ±15~45sec
Types of
Movements
types-of-movements

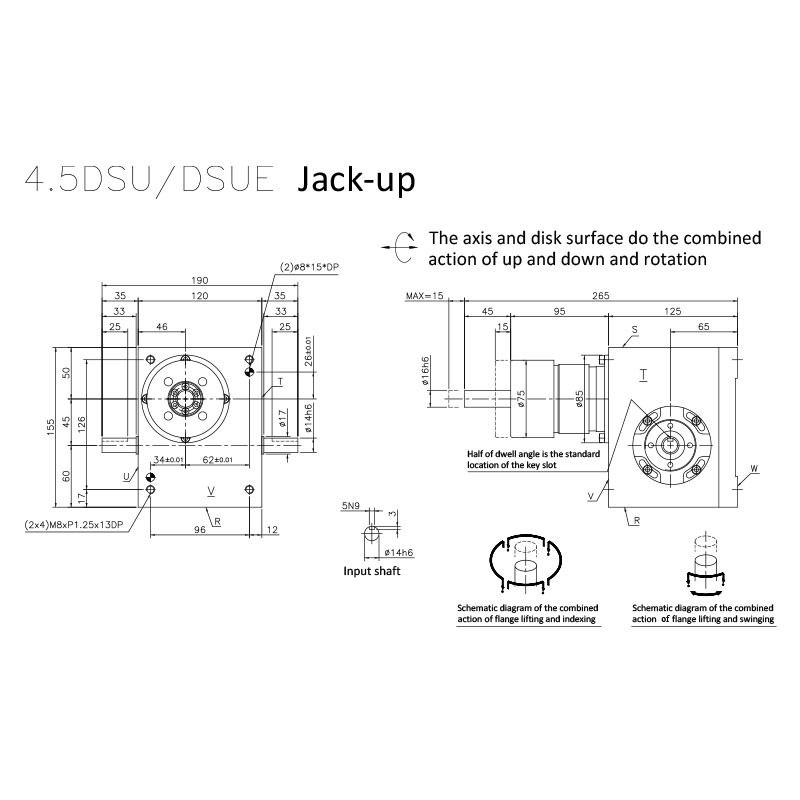

Dimensional Drawings
dimensional-drawings

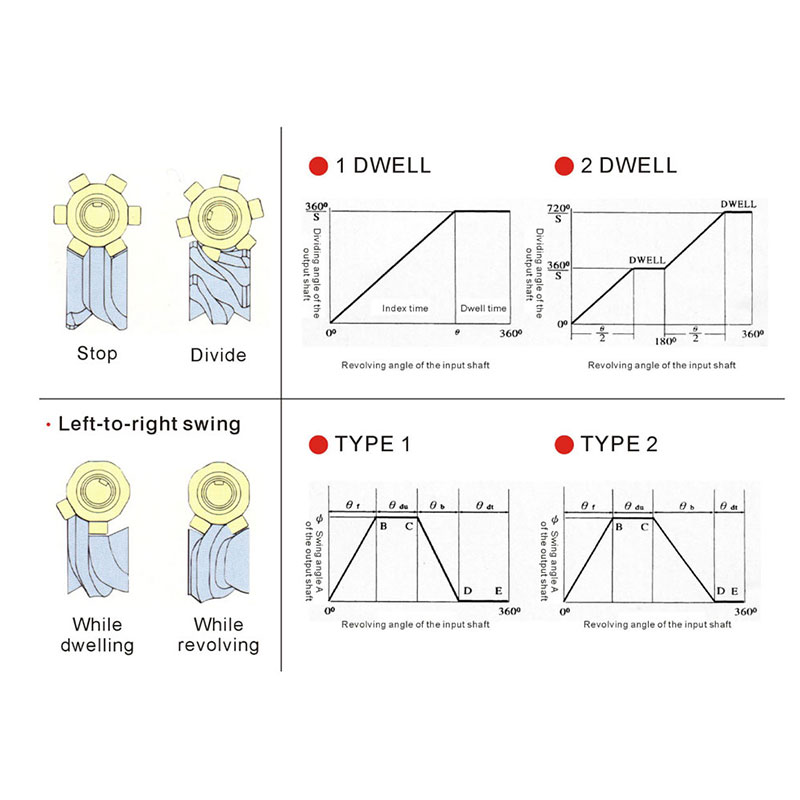

Movement Sequence Illustration
movement-sequence-illustration

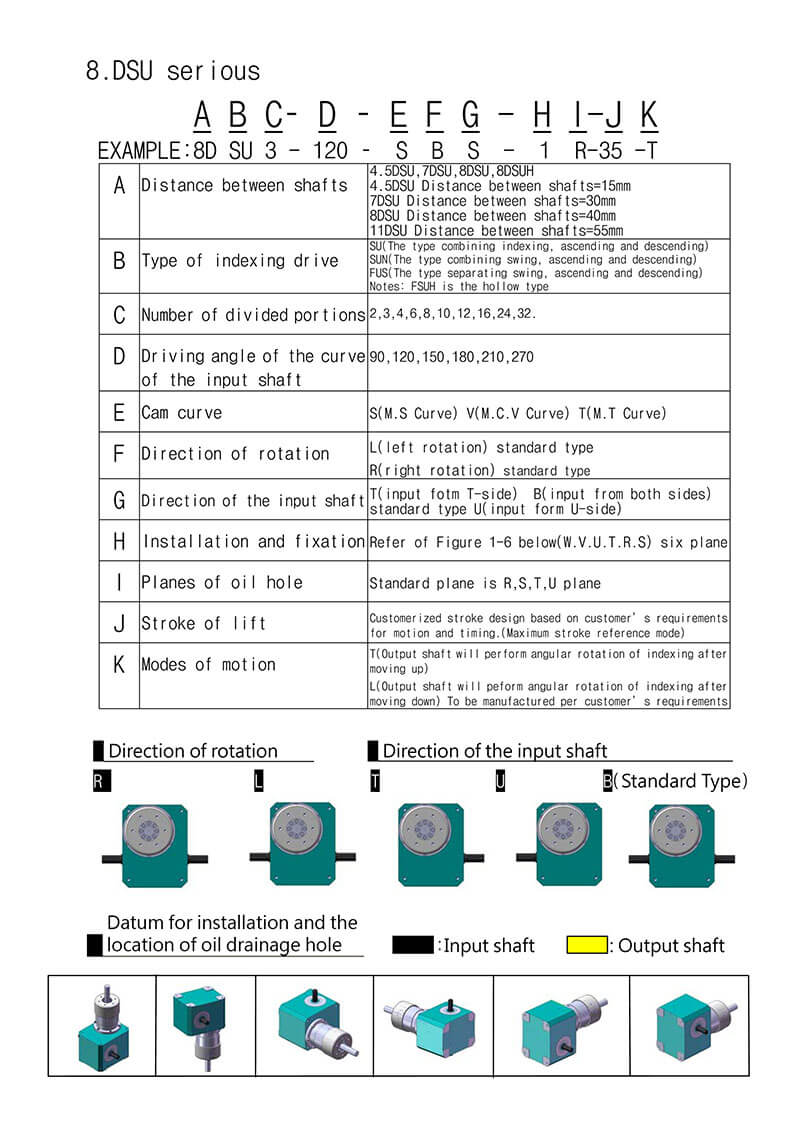

Specification Selection Explanations
specification-selection-explanations

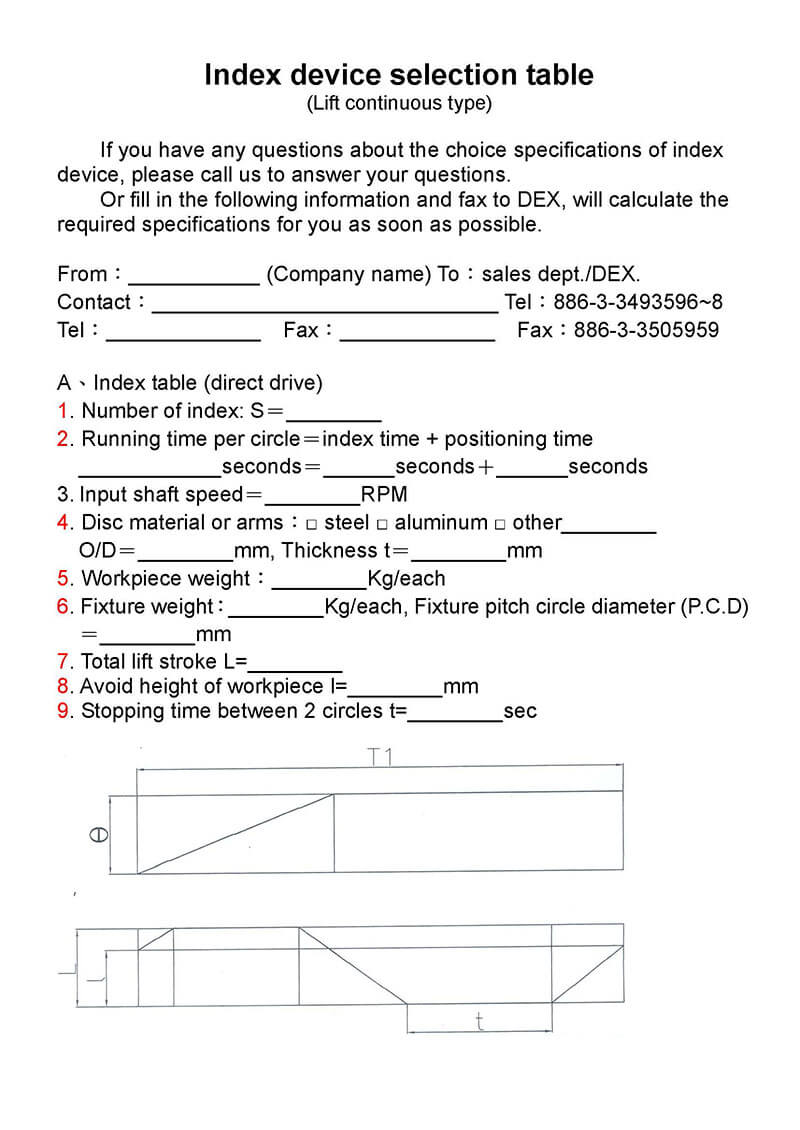

Diagram of Technical Support for Specifications
