Intermittent Precision Index
DF Flange Type
8DF
| Applications | Special purpose machinery & equipment |
|---|---|
| Properties | Indexing accuracy of ±10~75sec. |
| Types of Movements |
 |
I.D. Chart
| Types | 4.5D | 6D | 7D | 8D | 11D | 14D | 18D | 25D |
|---|---|---|---|---|---|---|---|---|
| I.D. | Ø8 | Ø20 | Ø20 | Ø30 | Ø45 | Ø50 | Ø60 | Ø60 |
Dimensional Drawings
Movement Sequence Illustration
Specification Selection Explanations

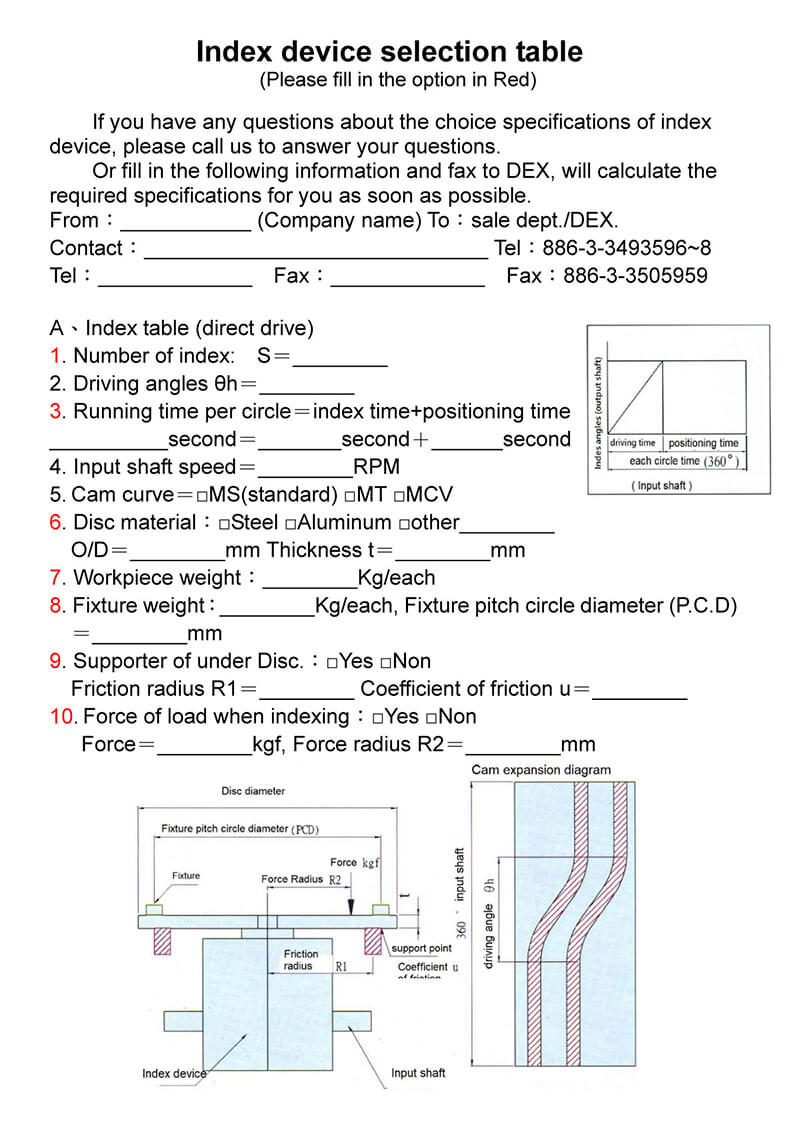

Diagram of Technical Support for Specifications
More Intermittent Precision Index
