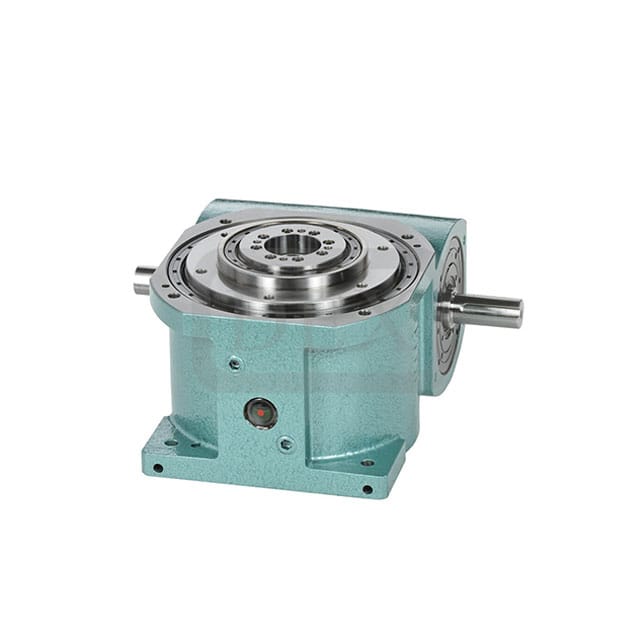

intermittent-precision-index-precision-hollow-flat-type-11ad

Intermittent Precision Index

AD Precision Hollow Flat Type

11AD

Applications TFTs, solar panels, special purpose machinery &
equipment, screen printing
Properties Indexing accuracy of ±5~30sec.
Types of
Movements		 types-of-movements

Download :

AD Series Catalogs Indexing Drives Catalogs User Manual 3D Product Image 2D Drawings Diagram of Technical Support

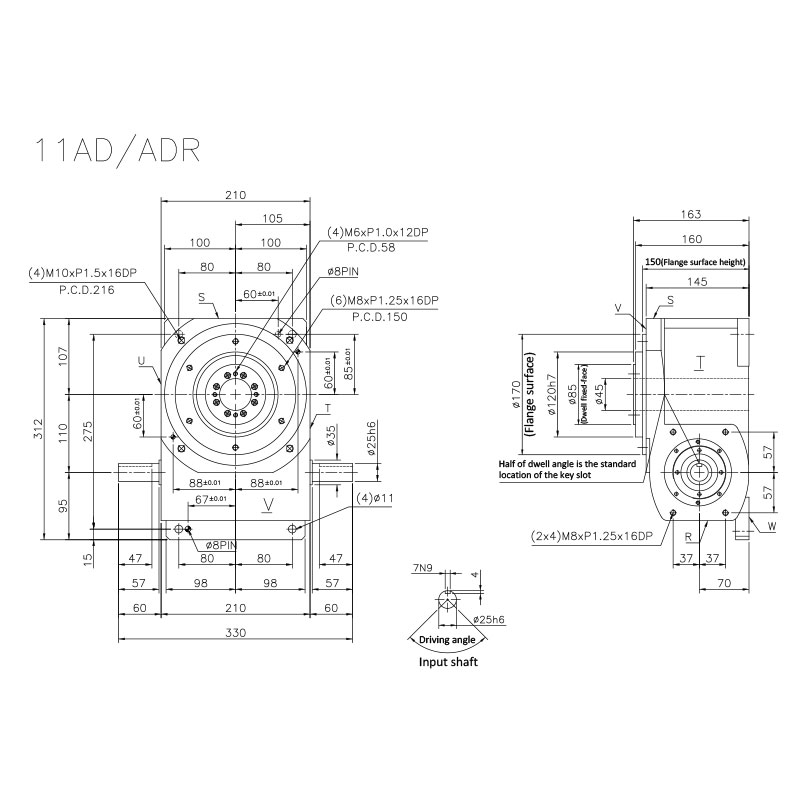

Dimensional Drawings
dimensional-drawings

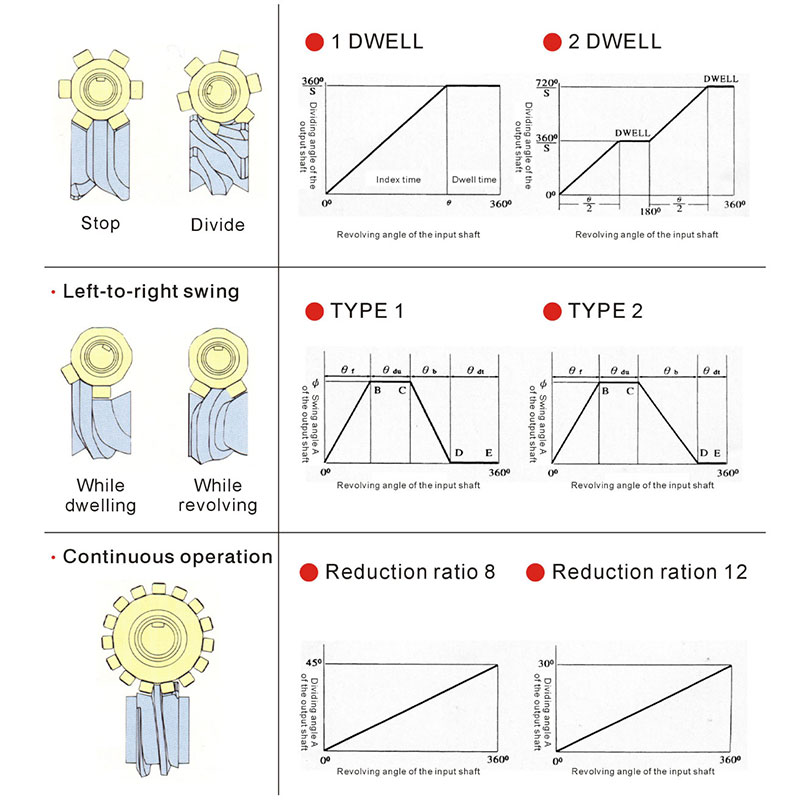

Movement Sequence Illustration
movement-sequence-illustration

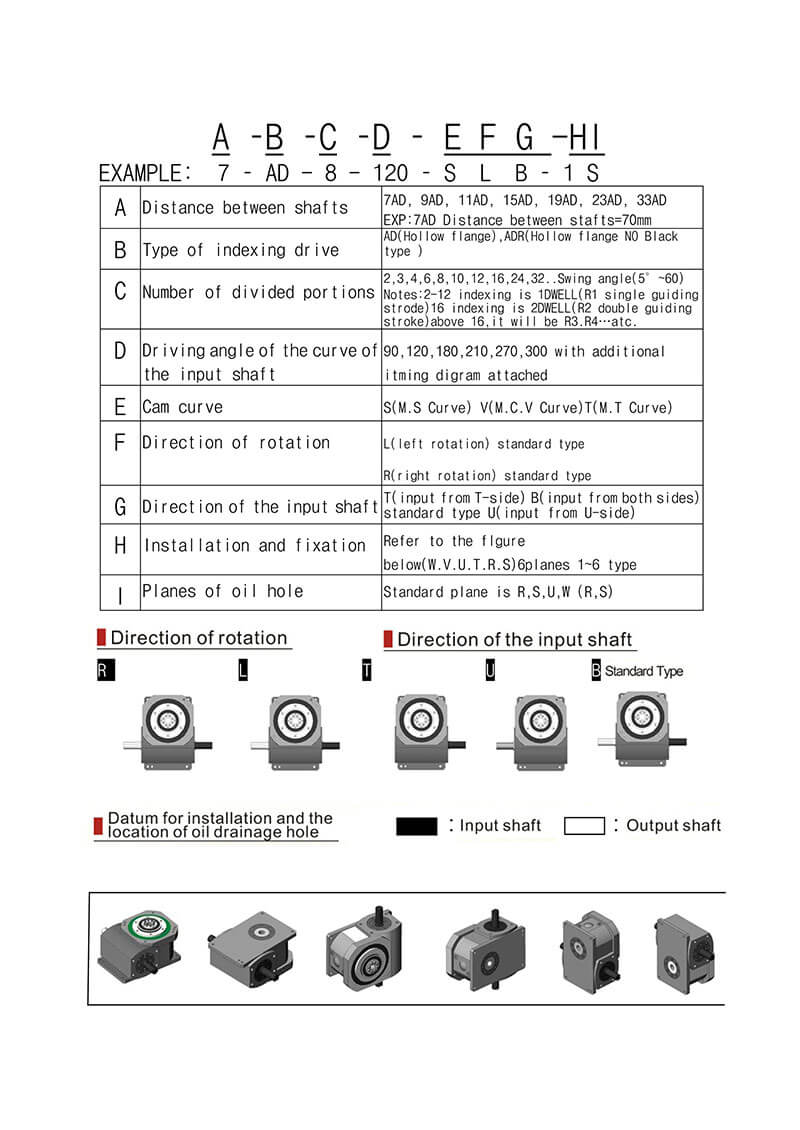

Specification Selection Explanations
specification-selection-explanations

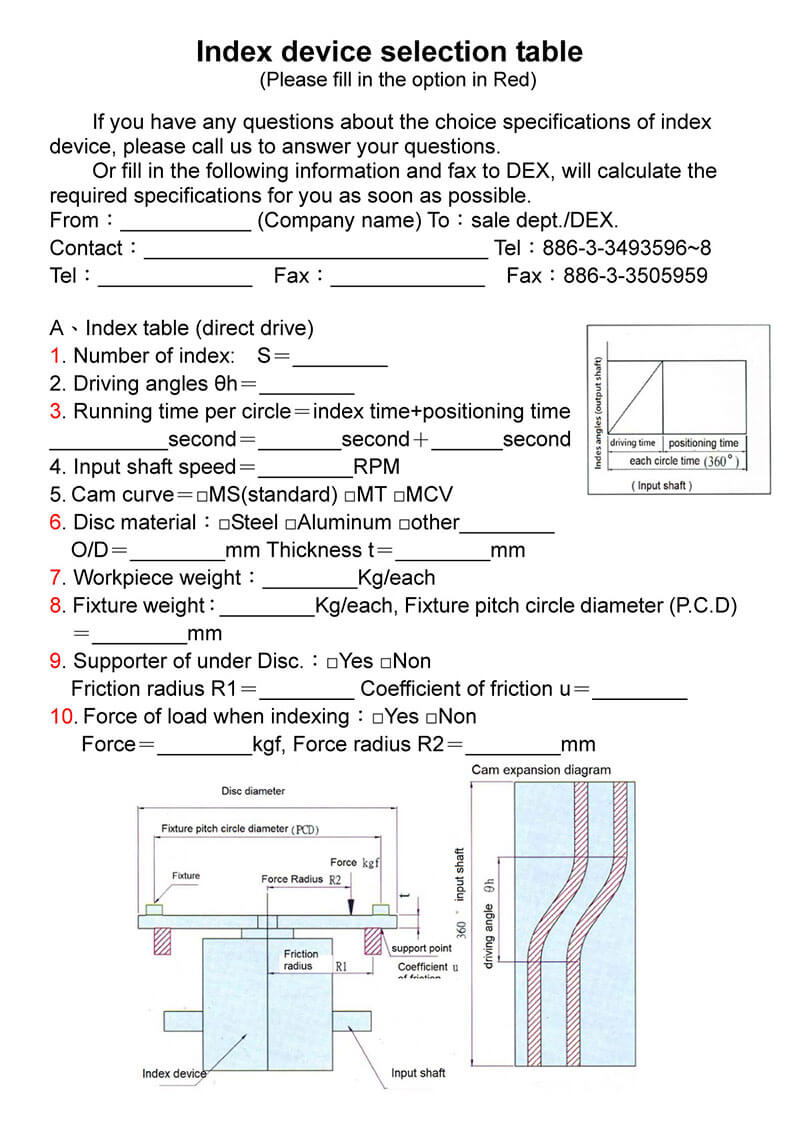

Diagram of Technical Support for Specifications
diagram-of-technical-support-for-specifications
