12-bt505-horizontal

ATC Systems

BT50 Series - HorizontalBT505 - Horizontal-type

Outline Drawing
renishaw-acu250-r-asis-corrected
renishaw-acu250-r-asis-corrected

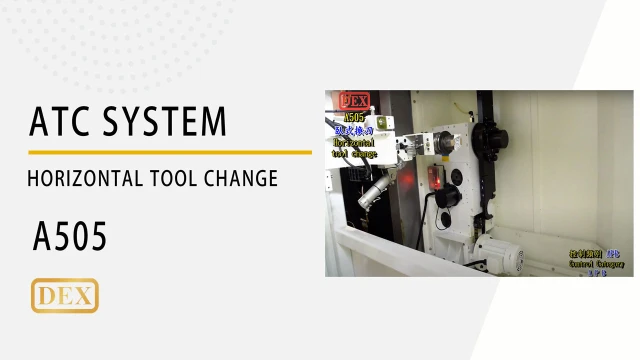

video-a505-250208

Horizontal Tool Change / APB / A505

ContRoller-Types
Part Number
Time Interval For Cutter Please refer to the A505 speed ratio loading table
Tool Buckling Angles 60°~90°(based on customer requirements)
Cutter Pulling Strokechange 165mm-MAX(We can customize strokes according to different types of tool holders)
Maximum Loading 40kg
Signal Specifications Decoder
Driving Horse Power 1.5HP
Weight Of The Product 250kg(with oil)
Accuracy

Overlapping accuracy 3"

Horizontal Accuracy 0.2mm
Part Number 55DEXA157C (BT-50)-Horizontal
Time Interval For Cutter Please refer to the A505 speed ratio loading table
Tool Buckling Angles 60°~90°(based on customer requirements)
Cutter Pulling Strokechange 165mm-MAX(We can customize strokes according to different types of tool holders)
Maximum Loading 40kg
Signal Specifications Proximity Switch PNP-NOx3~4
Driving Horse Power 1.5HP
Weight Of The Product 250kg(with oil)
Accuracy

Overlapping accuracy 3"

Horizontal Accuracy 0.2mm
Movement Timing Illustration
Angle for cutter change can be defined per customer's need (60°~ 90°)
Angle for cutter change can be defined per customer's need (60°~ 90°)
We can customize strokes according to different types of tool holders
We can customize strokes according to different types of tool holders
A505 Instant Loading Diagram
Tool Change Arm T-to-T Distance/ Tool Arm Weight Reference
Tool Weight
Bilateral Loading of Tools		 Motor Frequency Belts Compatible with
1.5HP		 ATC Time Interval
For Cutter
15Kgx2 50Hz 38:45 2.45 sec
60Hz 38:45 2.07 sec
20Kgx2 50Hz 38:45 2.45 sec
60Hz 38:45 2.07 sec
25Kgx2 50Hz 38:45 2.45 sec
60Hz 38:50 2.3 sec
30Kgx2 50Hz 38:45 2.45 sec
60Hz 35:50 2.49 sec
35Kgx2 50Hz 38:50 2.72 sec
60Hz 35:50 2.49 sec
40Kgx2 50Hz 38:50 2.72 sec
60Hz 30:48 2.79 sec
Tool Weight
Bilateral Loading of Tools		 Motor Frequency Belts Compatible with
1.5HP		 ATC Time Interval
For Cutter
15Kgx2 50Hz 38:45 2.45 sec
60Hz 38:50 2.3 sec
20Kgx2 50Hz 38:45 2.45 sec
60Hz 35:50 2.49 sec
25Kgx2 50Hz 38:50 2.72 sec
60Hz 30:48 2.79 sec
30Kgx2 50Hz 38:50 2.72 sec
60Hz 30:48 2.79 sec
35Kgx2 50Hz 35:50 2.96 sec
60Hz 30:50 2.9 sec
40Kgx2 50Hz 30:48 3.31 sec
60Hz 27:50 3.23 sec
Tool Weight
Bilateral Loading of Tools		 Motor Frequency Belts Compatible with
1.5HP		 ATC Time Interval
For Cutter
15Kgx2 50Hz 38:50 2.72 sec
60Hz 35:50 2.49 sec
20Kgx2 50Hz 38:50 2.72 sec
60Hz 30:48 2.79 sec
25Kgx2 50Hz 35:50 2.96 sec
60Hz 27:50 3.23 sec
30Kgx2 50Hz 30:48 3.31 sec
60Hz 27:50 3.23 sec
Tool Weight
Bilateral Loading of Tools		 Motor Frequency Belts Compatible with
1.5HP		 ATC Time Interval
For Cutter
15Kgx2 50Hz 35:50 2.96 sec
60Hz 30:50 2.9 sec
20Kgx2 50Hz 30:48 3.31 sec
60Hz 27:50 3.23 sec
25Kgx2 50Hz 30:50 3.45 sec
60Hz 30:67 3.9 sec
Tool Weight
Bilateral Loading of Tools		 Motor Frequency Belts Compatible with
1.5HP		 ATC Time Interval
For Cutter
15Kgx2 50Hz 30:48 3.31 sec
60Hz 27:50 3.23 sec
20Kgx2 50Hz 30:50 3.45 sec
60Hz 30:67 3.9 sec
25Kgx2 50Hz 27:50 3.83 sec
60Hz 30:67 3.9 sec
Tool Weight
Bilateral Loading of Tools		 Motor Frequency Belts Compatible with
1.5HP		 ATC Time Interval
For Cutter
15Kgx2 50Hz 30:50 3.45 sec
60Hz 30:67 3.9 sec
20Kgx2 50Hz 27:50 3.83 sec
60Hz 30:67 3.9 sec
Tool Weight
Bilateral Loading of Tools		 Motor Frequency Belts Compatible with
1.5HP		 ATC Time Interval
For Cutter
15Kgx2 50Hz 27:50 3.83 sec
60Hz 30:67 3.9 sec
20Kgx2 50Hz 27:50 3.83 sec
60Hz 30:67 3.9 sec
