5axis Rotary Tilting Tables

ACS Series

ACS320

Specifications

ITEM UNIT ACS320
Workpiece dia.max. mm Ø510
Table diameter mm Ø320
Table center Height mm 290
Datum hole mm Ø90H7
Through-hole mm Ø60H7
T-slot on table mm 12H7
Datum positioning key mm 18h7
Allowable cutting torque kg-m 50
Allowable work-piece load kg 0°/170kg 90°/140kg
Axis degree Rotating axis (C-axis), 360° Tilt axis (A-axis), +30°~-120°
Servo motor (Option) FANUC α iF4, β iS8 α iF8+B, β iS8+B
Mitsubishi HF-154S HF-154BS
Siemens 1FK7060 1FK7063+B
Heidenhain QSY116C QSY116J+B
Total reduction ratio -- 1/60 1/120
Mini. degree degree 0.001 0.001
Maximum rpm rpm 50 25
Clamp power source -- Hydraulic Hydraulic
Clamp pressure kg/cm² 25 25
Clamp torque kg-m 60 180
Index accuracy sec 15 20 (+30°~-120°)
Repetition accuracy sec 4 4
Product weight kg 500
ITEM UNIT ACS250
Workpiece dia.max. mm Ø460
Table diameter mm Ø250
Table center Height mm 285
Datum hole mm Ø90H7
Through-hole mm Ø60H7
T-slot on table mm 12H7
Datum positioning key mm 18h7
Allowable cutting torque kg-m 50
Allowable work-piece load kg 0°/170kg 90°/140kg
Axis degree Rotating axis (C-axis), 360° Tilt axis (A-axis), +30°~-120°
Servo motor (Option) FANUC α iF4 α iF8+B
Mitsubishi HF-154S HF-154BS
Siemens 1FK7060 1FK7063+B
Heidenhain QSY116C QSY116J+B
Total reduction ratio/td> -- 1/60 1/96
Mini. degree degree 0.001 0.001
Maximum rpm rpm 50 32
Clamp power source -- Hydraulic Hydraulic
Clamp pressure kg/cm² 25 25
Clamp torque kg-m 60 115
Index accuracy sec 15 20 (+30°~-120°)
Repetition accuracy sec 4 4
Product weight kg 455
ITEM UNIT ACS420
Workpiece dia.max. mm Ø640
Table diameter mm Ø420
Table center Height mm 305
Datum hole mm Ø90H7
Through-hole mm Ø60H7
T-slot on table mm 14H7
Datum positioning key mm 18h7
Allowable cutting torque kg-m 81
Allowable work-piece load kg 0°/220kg 90°/170kg
Axis degree Rotating axis (C-axis), 360° Tilt axis (A-axis), +30°~-120°
Servo motor (Option) FANUC α iF8, β iS8 α iF8+B, β iS8+B
Mitsubishi HF-154S HF-154BS
Siemens 1FK7063 1FK7063+B
Heidenhain QSY116J QSY116J+B
Total reduction ratio -- 1/60 1/120
Mini. degree degree 0.001 0.001
Maximum rpm rpm 50 25
Clamp power source -- Hydraulic Hydraulic
Clamp pressure kg/cm² 25 25
Clamp torque kg-m 60 180
Index accuracy sec 15 20 (+30°~-120°)
Repetition accuracy sec 4 4
Product weight kg 650
ITEM UNIT ACS500
Workpiece dia.max. mm Ø760
Table diameter mm Ø500
Table center Height mm 285
Datum hole mm Ø120H7
Through-hole mm Ø90H7
T-slot on table mm 18H7
Datum positioning key mm 18h7
Allowable cutting torque kg-m 91
Allowable work-piece load kg 0°/500kg 90°/340kg
Axis degree Rotating axis (C-axis), 360° Tilt axis (A-axis), +30°~-120°
Servo motor (Option) FANUC α iF8 α iF22+B
β iS12 β iS22+B
Mitsubishi HF-154S HF-345BS
Siemens 1FK7063 1FK7084+B
Heidenhain QSY116J QSY155F+B
Total reduction ratio -- 1/96 1/120
Mini. degree degree 0.001 0.001
Maximum rpm rpm 31 25
Clamp power source -- Hydraulic Hydraulic
Clamp pressure kg/cm² 35 35
Clamp torque kg-m 220 710
Index accuracy sec 15 30 (+30°~-120°)
Repetition accuracy sec 4 4
Product weight kg 930

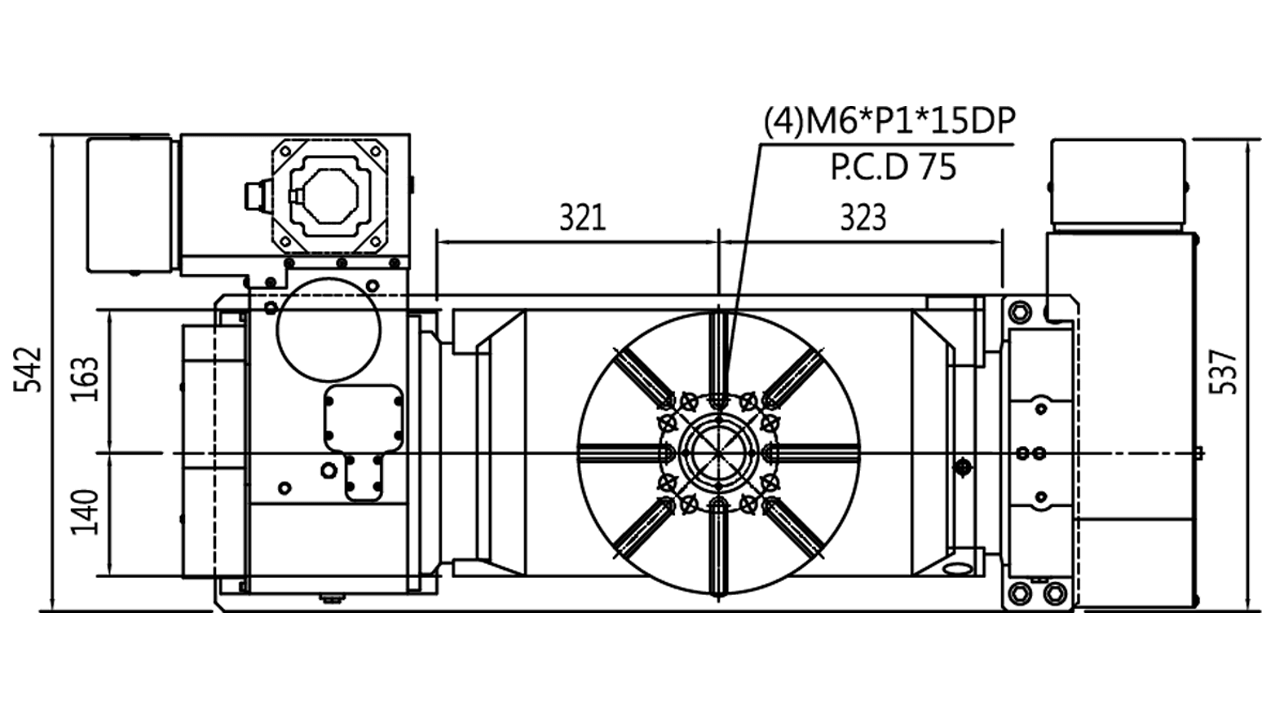

Size Drawings

ACS320

ACS320
