Disc / Chain Type Tool Magazine

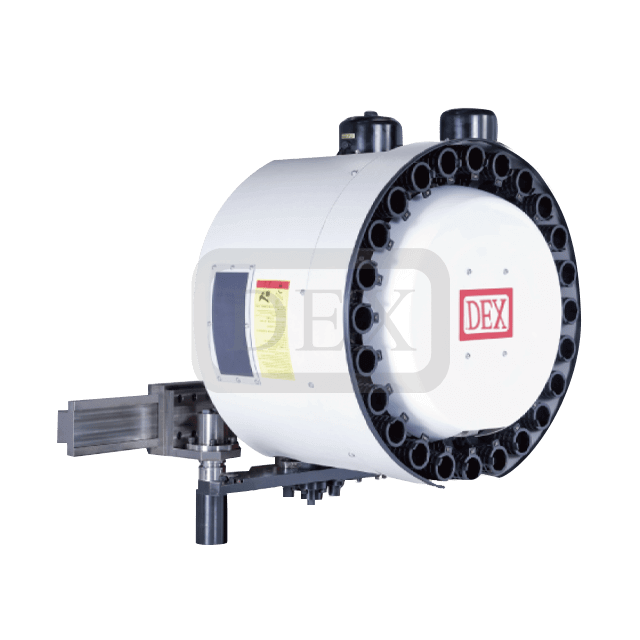

40# Disc type Tool Magazine (right-mag.)

24T/30T Disc type Tool Magazine

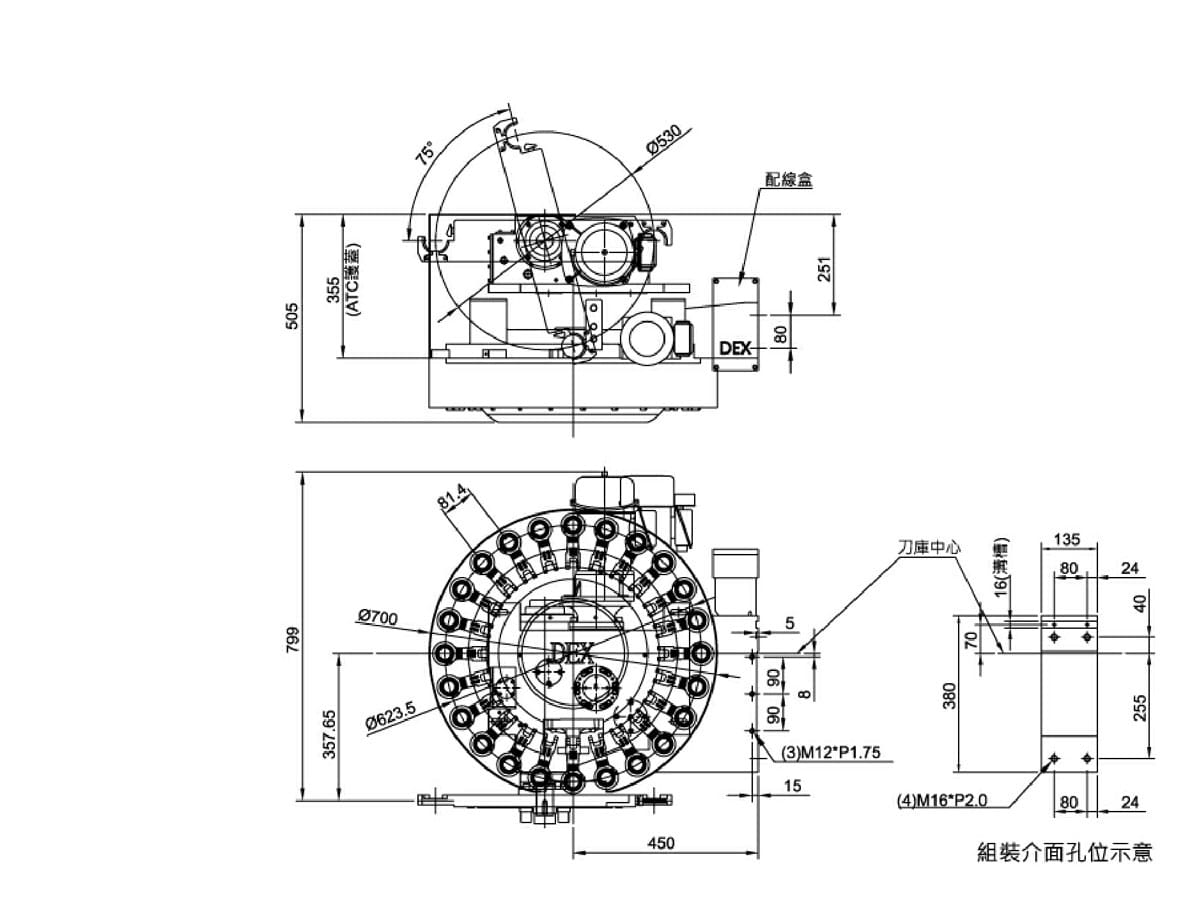

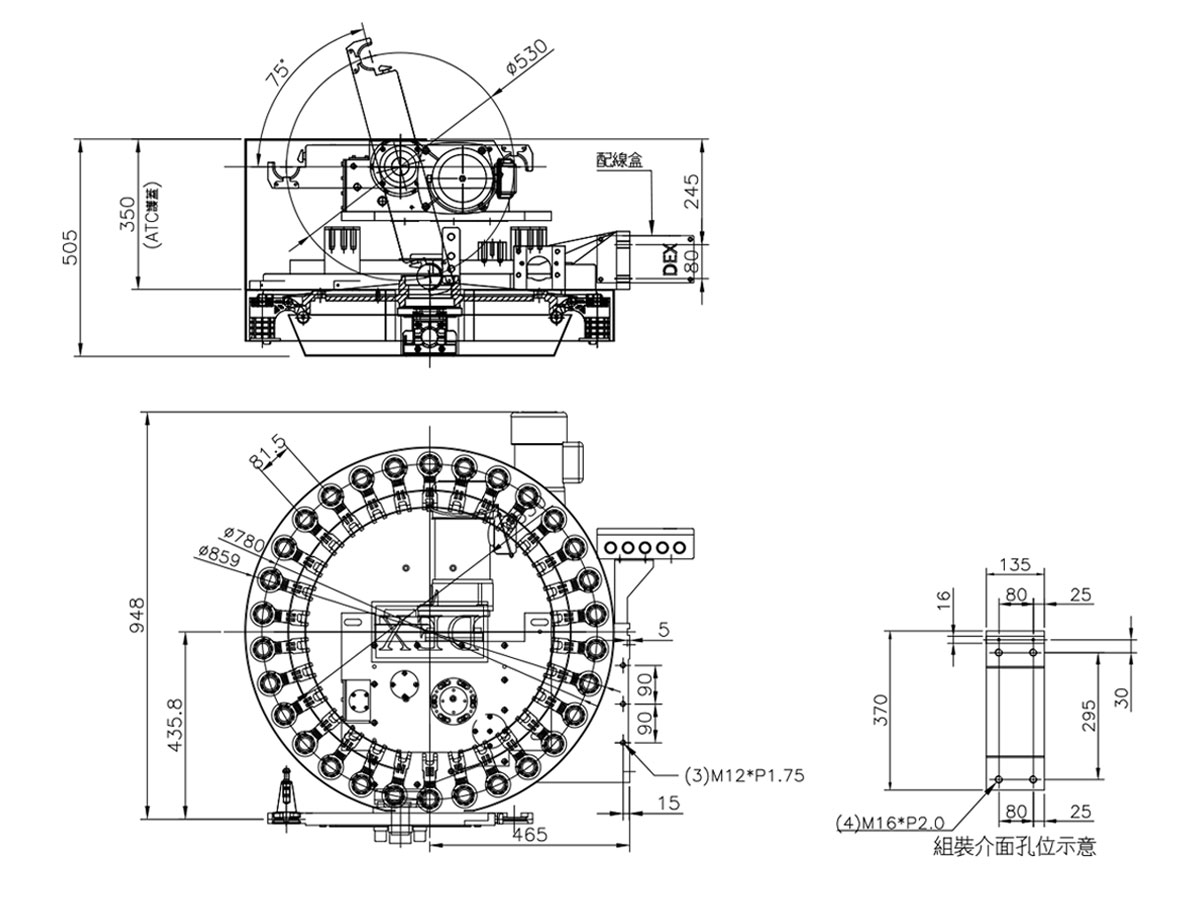

Size Drawings

24T

outline-drawing-24T-left
Specifications
Tool Arm Length 480 / 530 / 580 / 650 mm
Tool Models BT / CAT / DIN / HSK63A
Tool Capacity 24T/30T
Maximum Tool Length 300 mm
Maximum Tool Diameter Ø80 mm
Maximum Tool Weight 8 kg
Drive Source Ø3-220V/380V
Pneumatic Pressure 4.5-8 kg/cm
Tool Change Time  (ATC) T to T: 1.3~1.5 sec
