4axis Rotary Tilting Tables
Multiple Workpieces-RD Series

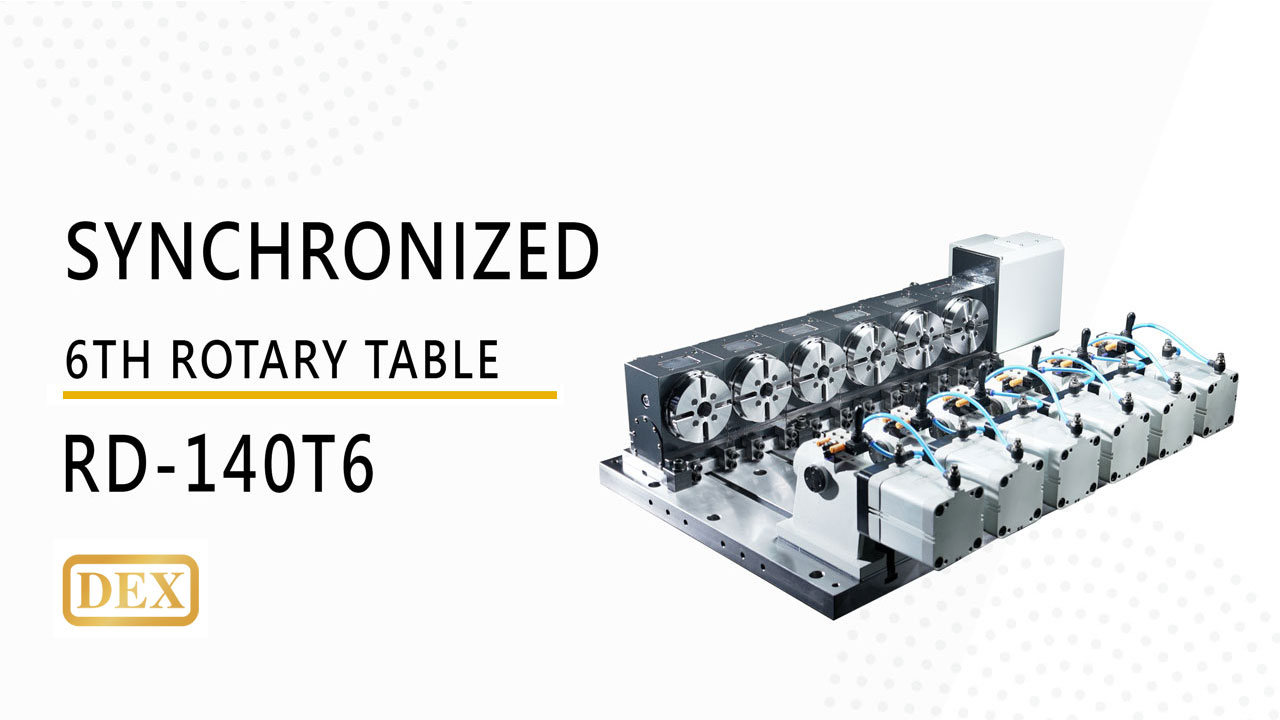

RD140T6
Specifications
| ITEM | UNIT | RD140T6 | |||
|---|---|---|---|---|---|
| Table diameter | mm | Ø140 | |||
| Center height | mm | 190 | |||
| Datum hole | mm | Ø35H7 | |||
| Through-hole | mm | Ø20H7 | |||
| T-slot on table | mm | 12H7 | |||
| Datum positioning key | mm | 18h7 | |||
| Servo motor (Option) | FANUC | α iF8 | Motor interface □130 |
||
| Total reduction ratio | -- | 30 | |||
| Allowable cutting torque | kg-m | 20 | |||
| Max. rpm | rpm | 100 | |||
| Clamp power source | - | Hydraulic | |||
| Clamp pressure | kg/cm² | 6/35 | |||
| Clamp torque | kg-m | 9/20 | |||
| Index accuracy | sec | 25 | |||
| Repetition accuracy | sec | 7 | |||
| Allowable work-piece load | Level (kg) | 60 | |||
| Vertical (kg) | 120 | ||||
