Vertical Tool Change

BT30 Series

A30S - Left Mag.

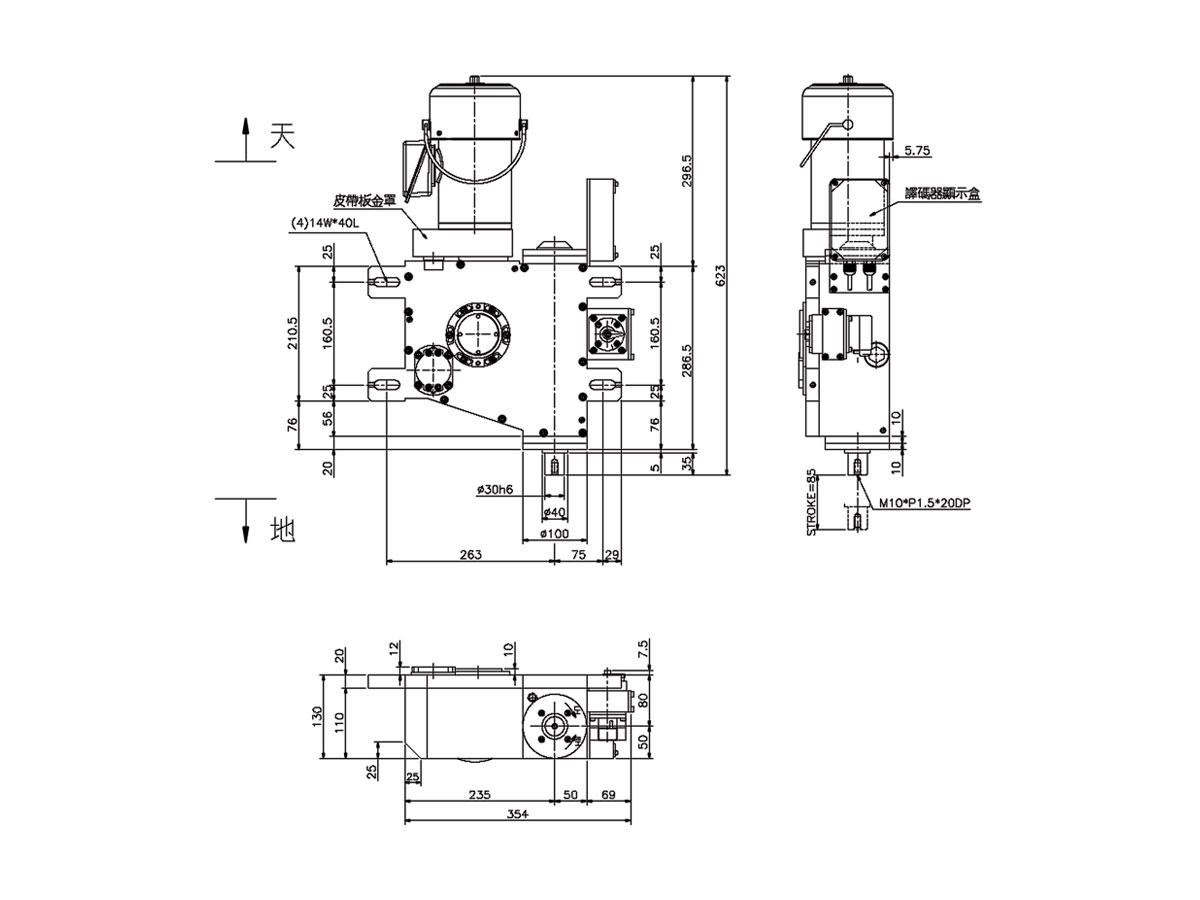

Outline Drawing

renishaw-acu250-r-asis-corrected

Video

ContRoller-Types

Movement Timing Illustration



size-drawings-acu250-en-01

Angle for cutter change can be defined per customer's need (60°~ 90°)

top-view-drawing-acu250-02

We can customize strokes according to different types of tool holders

A30S Instant Loading Diagram

Tool Change Arm T-to-T Distance/ Tool Arm Weight Reference
Tool Weight
Unilateral Loading of Tool
Motor Frequency Compatible with
1/3HP motors
ATC Time Interval
For Cutter
1.5Kgx2 50Hz 30:30 1 sec
60Hz 30:30 0.84 sec
2Kgx2 50Hz 30:30 1 sec
60Hz 30:30 0.84 sec
2.5Kgx2 50Hz 30:30 1 sec
60Hz 30:30 0.84 sec
3Kgx2 50Hz 30:30 1 sec
60Hz 24:30 1.04 sec
Tool Weight
Unilateral Loading of Tool
Motor Frequency Compatible with
1/3HP motors
ATC Time Interval
For Cutter
1.5Kgx2 50Hz 30:30 1 sec
60Hz 30:30 0.84 sec
2Kgx2 50Hz 30:30 1 sec
60Hz 24:30 0.84 sec
2.5Kgx2 50Hz 30:30 1 sec
60Hz 24:30 1.04 sec
3Kgx2 50Hz 30:30 1 sec
60Hz 24:30 1.04 sec
Tool Weight
Unilateral Loading of Tool
Motor Frequency Compatible with
1/3HP motors
ATC Time Interval
For Cutter
1.5Kgx2 50Hz 30:30 1 sec
60Hz 30:30 0.84 sec
2Kgx2 50Hz 30:30 1 sec
60Hz 24:30 1.04 sec
2.5Kgx2 50Hz 24:30 1.24 sec
60Hz 24:30 1.04 sec
3Kgx2 50Hz 24:30 1.24 sec
