ATC Systems

Vertical Tool Change (Left Mag.)

BT30 Series

A304 - Synchronous Unclamping

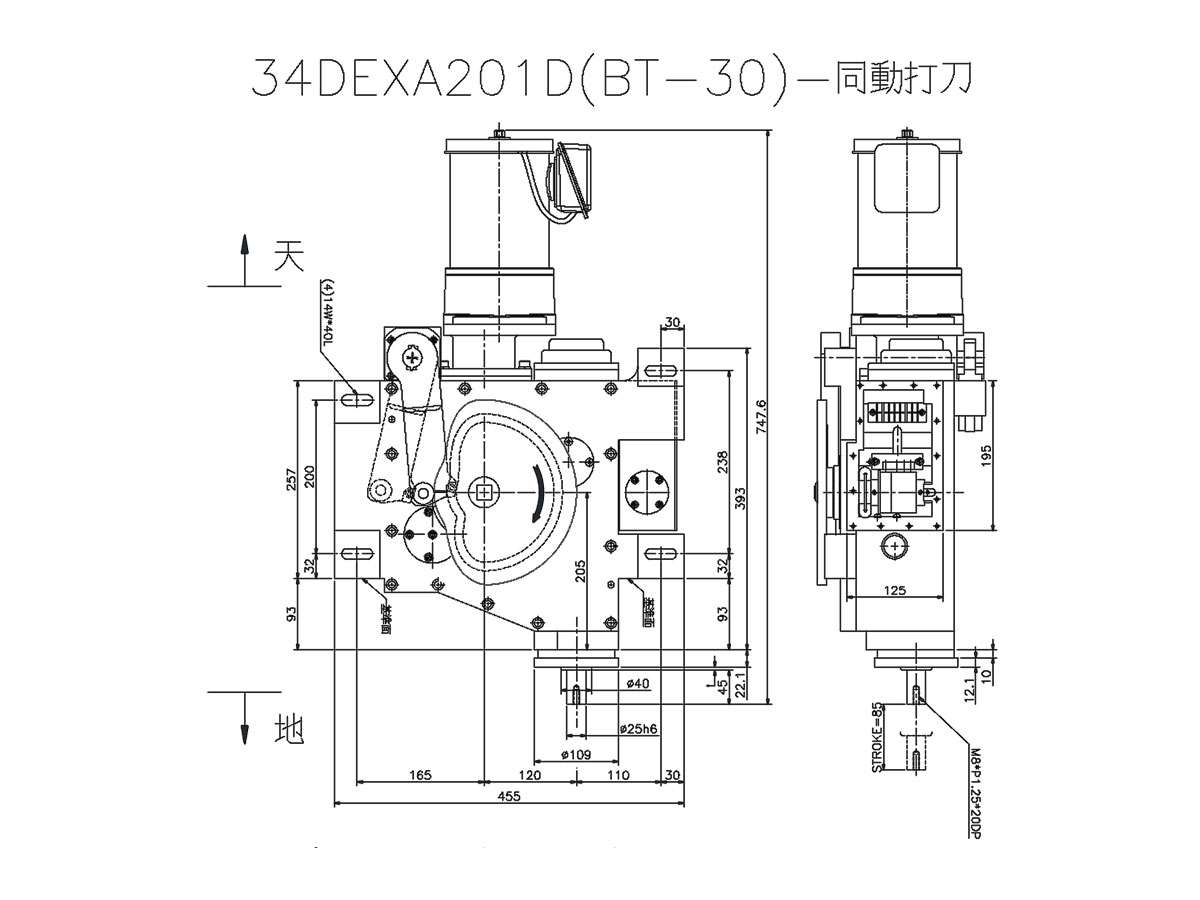

Outline Drawing

renishaw-acu250-r-asis-corrected

Video

ContRoller-Types

Movement Timing Illustration

size-drawings-acu250-en-01

Angle for cutter change can be defined per customer's need (60°~ 90°)

top-view-drawing-acu250-02

We can customize strokes according to different types of tool holders

top-view-drawing-acu250-02

Simultaneous Unclamping Travel 16.43 mm

A304 Instant Loading Diagram

Tool Change Arm T-to-T Distance/ Tool Arm Weight Reference
Tool Weight
Unilateral Loading of Tool
Motor Frequency Compatible with
1/3HP motors
ATC Time Interval
For Cutter
1.5Kgx2 50Hz 1:8 0.99 sec
60Hz 1:8 0.84 sec
2Kgx2 50Hz 1:8 0.99 sec
60Hz 1:8 0.84 sec
2.5Kgx2 50Hz 1:8 0.99 sec
60Hz 1:8 0.84 sec
3Kgx2 50Hz 1:8 0.99 sec
60Hz 1:8 0.84 sec
3.5Kgx2 50Hz 1:8 0.99 sec
60Hz 1:10 1.05 sec
4Kgx2 50Hz 1:8 0.99 sec
60Hz 1:10 1.05 sec
Tool Weight
Unilateral Loading of Tool
Motor Frequency Compatible with
1/3HP motors
ATC Time Interval
For Cutter
1.5Kgx2 50Hz 1:8 0.99 sec
60Hz 1:8 0.84 sec
2Kgx2 50Hz 1:8 0.99 sec
60Hz 1:8 0.84 sec
2.5Kgx2 50Hz 1:8 0.99 sec
60Hz 1:8 0.84 sec
3Kgx2 50Hz 1:8 0.99 sec
60Hz 1:10 1.05 sec
3.5Kgx2 50Hz 1:8 0.99 sec
60Hz 1:10 1.05 sec
4Kgx2 50Hz 1:8 0.99 sec
60Hz 1:10 1.05 sec
Tool Weight
Unilateral Loading of Tool
Motor Frequency Compatible with
1/3HP motors
ATC Time Interval
For Cutter
1.5Kgx2 50Hz 1:8 0.99 sec
60Hz 1:8 0.84 sec
2Kgx2 50Hz 1:8 0.99 sec
60Hz 1:8 0.84 sec
2.5Kgx2 50Hz 1:8 0.99 sec
60Hz 1:10 1.05 sec
3Kgx2 50Hz 1:8 0.99 sec
60Hz 1:10 1.05 sec
3.5Kgx2 50Hz 1:10 1.24 sec
60Hz 1:10 1.05 sec
4Kgx2 50Hz 1:10 1.24 sec
60Hz 1:12 1.25 sec
Tool Weight
Unilateral Loading of Tool
Motor Frequency Compatible with
1/3HP motors
ATC Time Interval
For Cutter
1.5Kgx2 50Hz 1:8 0.99 sec
60Hz 1:8 0.84 sec
2Kgx2 50Hz 1:8 0.99 sec
60Hz 1:10 1.05 sec
2.5Kgx2 50Hz 1:8 0.99 sec
60Hz 1:10 1.05 sec
3Kgx2 50Hz 1:10 1.24 sec
60Hz 1:10 1.05 sec
3.5Kgx2 50Hz 1:10 1.24 sec
60Hz 1:12 1.25 sec
4Kgx2 50Hz 1:10 1.24 sec
60Hz 1:12 1.25 sec
Tool Weight
Unilateral Loading of Tool
Motor Frequency Compatible with
1/3HP motors
ATC Time Interval
For Cutter
1.5Kgx2 50Hz 1:8 0.99 sec
60Hz 1:8 0.84 sec
2Kgx2 50Hz 1:8 0.99 sec
60Hz 1:10 1.05 sec
2.5Kgx2 50Hz 1:10 1.24 sec
60Hz 1:10 1.05 sec
3Kgx2 50Hz 1:10 1.24 sec
60Hz 1:12 1.25 sec
3.5Kgx2 50Hz 1:10 1.24 sec
60Hz 1:12 1.25 sec
4Kgx2 50Hz 1:10 1.24 sec
60Hz 1:12 1.25 sec
Tool Weight
Unilateral Loading of Tool
Motor Frequency Compatible with
1/3HP motors
ATC Time Interval
For Cutter
1.5Kgx2 50Hz 1:8 0.99 sec
60Hz 1:10 1.05 sec
2Kgx2 50Hz 1:10 1.24 sec
60Hz 1:10 1.05 sec
2.5Kgx2 50Hz 1:10 1.24 sec
60Hz 1:12 1.25 sec
3Kgx2 50Hz 1:10 1.24 sec
60Hz 1:12 1.25 sec
3.5Kgx2 50Hz 1:12 1.49 sec
60Hz 1:15 1.57 sec
4Kgx2 50Hz 1:12 1.49 sec
60Hz 1:15 1.57 sec
Tool Weight
Unilateral Loading of Tool
Motor Frequency Compatible with
1/3HP motors
ATC Time Interval
For Cutter
1.5Kgx2 50Hz 1:10 1.24 sec
60Hz 1:10 1.05 sec
2Kgx2 50Hz 1:10 1.24 sec
60Hz 1:12 1.25 sec
2.5Kgx2 50Hz 1:10 1.24 sec
60Hz 1:12 1.25 sec
3Kgx2 50Hz 1:12 1.49 sec
60Hz 1:15 1.57 sec
3.5Kgx2 50Hz 1:12 1.49 sec
60Hz 1:15 1.57 sec
4Kgx2 50Hz 1:12 1.49 sec
60Hz 1:15 1.57 sec

Tool Change Arm T-to-T Distance/ Tool Arm Weight Reference
Tool Weight
Unilateral Loading of Tool
Motor Frequency Compatible with
1/3HP motors
ATC Time Interval
For Cutter
1.5Kg 50Hz 1:8 0.99 sec
60Hz 1:8 0.84 sec
2Kg 50Hz 1:8 0.99 sec
60Hz 1:8 0.84 sec
2.5Kg 50Hz 1:8 0.99 sec
60Hz 1:8 0.84 sec
3Kg 50Hz 1:8 0.99 sec
60Hz 1:8 0.84 sec
3.5Kg 50Hz 1:8 0.99 sec
60Hz 1:8 0.84 sec
4Kg 50Hz 1:8 0.99 sec
60Hz 1:8 0.84 sec
Tool Weight
Unilateral Loading of Tool
Motor Frequency Compatible with
1/3HP motors
ATC Time Interval
For Cutter
1.5Kg 50Hz 1:8 0.99 sec
60Hz 1:8 0.84 sec
2Kg 50Hz 1:8 0.99 sec
60Hz 1:8 0.84 sec
2.5Kg 50Hz 1:8 0.99 sec
60Hz 1:8 0.84 sec
3Kg 50Hz 1:8 0.99 sec
60Hz 1:8 0.84 sec
3.5Kg 50Hz 1:8 0.99 sec
60Hz 1:8 0.84 sec
4Kg 50Hz 1:8 0.99 sec
60Hz 1:8 0.84 sec
Tool Weight
Unilateral Loading of Tool
Motor Frequency Compatible with
1/3HP motors
ATC Time Interval
For Cutter
1.5Kg 50Hz 1:8 0.99 sec
60Hz 1:8 0.84 sec
2Kg 50Hz 1:8 0.99 sec
60Hz 1:8 0.84 sec
2.5Kg 50Hz 1:8 0.99 sec
60Hz 1:8 0.84 sec
3Kg 50Hz 1:8 0.99 sec
60Hz 1:8 0.84 sec
3.5Kg 50Hz 1:8 0.99 sec
60Hz 1:10 1.05 sec
4Kg 50Hz 1:8 0.99 sec
60Hz 1:10 1.05 sec
Tool Weight
Unilateral Loading of Tool
Motor Frequency Compatible with
1/3HP motors
ATC Time Interval
For Cutter
1.5Kg 50Hz 1:8 0.99 sec
60Hz 1:8 0.84 sec
2Kg 50Hz 1:8 0.99 sec
60Hz 1:8 0.84 sec
2.5Kg 50Hz 1:8 0.99 sec
60Hz 1:8 0.84 sec
3Kg 50Hz 1:8 0.99 sec
60Hz 1:10 1.05 sec
3.5Kg 50Hz 1:8 0.99 sec
60Hz 1:10 1.05 sec
4Kg 50Hz 1:8 0.99 sec
60Hz 1:10 1.05 sec
Tool Weight
Unilateral Loading of Tool
Motor Frequency Compatible with
1/3HP motors
ATC Time Interval
For Cutter
1.5Kg 50Hz 1:8 0.99 sec
60Hz 1:8 0.84 sec
2Kg 50Hz 1:8 0.99 sec
60Hz 1:8 0.84 sec
2.5Kg 50Hz 1:8 0.99 sec
60Hz 1:10 1.05 sec
3Kg 50Hz 1:8 0.99 sec
60Hz 1:10 1.05 sec
3.5Kg 50Hz 1:8 0.99 sec
60Hz 1:10 1.05 sec
4Kg 50Hz 1:10 1.24 sec
60Hz 1:10 1.05 sec
Tool Weight
Unilateral Loading of Tool
Motor Frequency Compatible with
1/3HP motors
ATC Time Interval
For Cutter
1.5Kg 50Hz 1:8 0.99 sec
60Hz 1:8 0.84 sec
2Kg 50Hz 1:8 0.99 sec
60Hz 1:10 1.05 sec
2.5Kg 50Hz 1:8 0.99 sec
60Hz 1:10 1.05 sec
3Kg 50Hz 1:8 0.99 sec
60Hz 1:10 1.05 sec
3.5Kg 50Hz 1:10 1.24 sec
60Hz 1:10 1.05 sec
4Kg 50Hz 1:10 1.24 sec
60Hz 1:12 1.25 sec
Tool Weight
Unilateral Loading of Tool
Motor Frequency Compatible with
1/3HP motors
ATC Time Interval
For Cutter
1.5Kg 50Hz 1:8 0.99 sec
60Hz 1:10 1.05 sec
2Kg 50Hz 1:8 0.99 sec
60Hz 1:10 1.05 sec
2.5Kg 50Hz 1:10 1.24 sec
60Hz 1:10 1.05 sec
3Kg 50Hz 1:10 1.24 sec
60Hz 1:12 1.25 sec
3.5Kg 50Hz 1:10 1.24 sec
60Hz 1:12 1.25 sec
4Kg 50Hz 1:10 1.24 sec
60Hz 1:12 1.25 sec
