ATC Systems

Vertical Tool Change

ISO25 Series

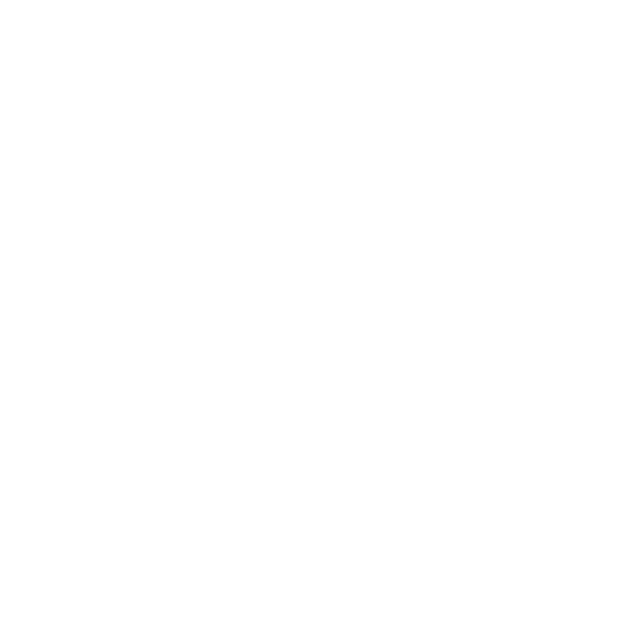

A025 - Left Mag.

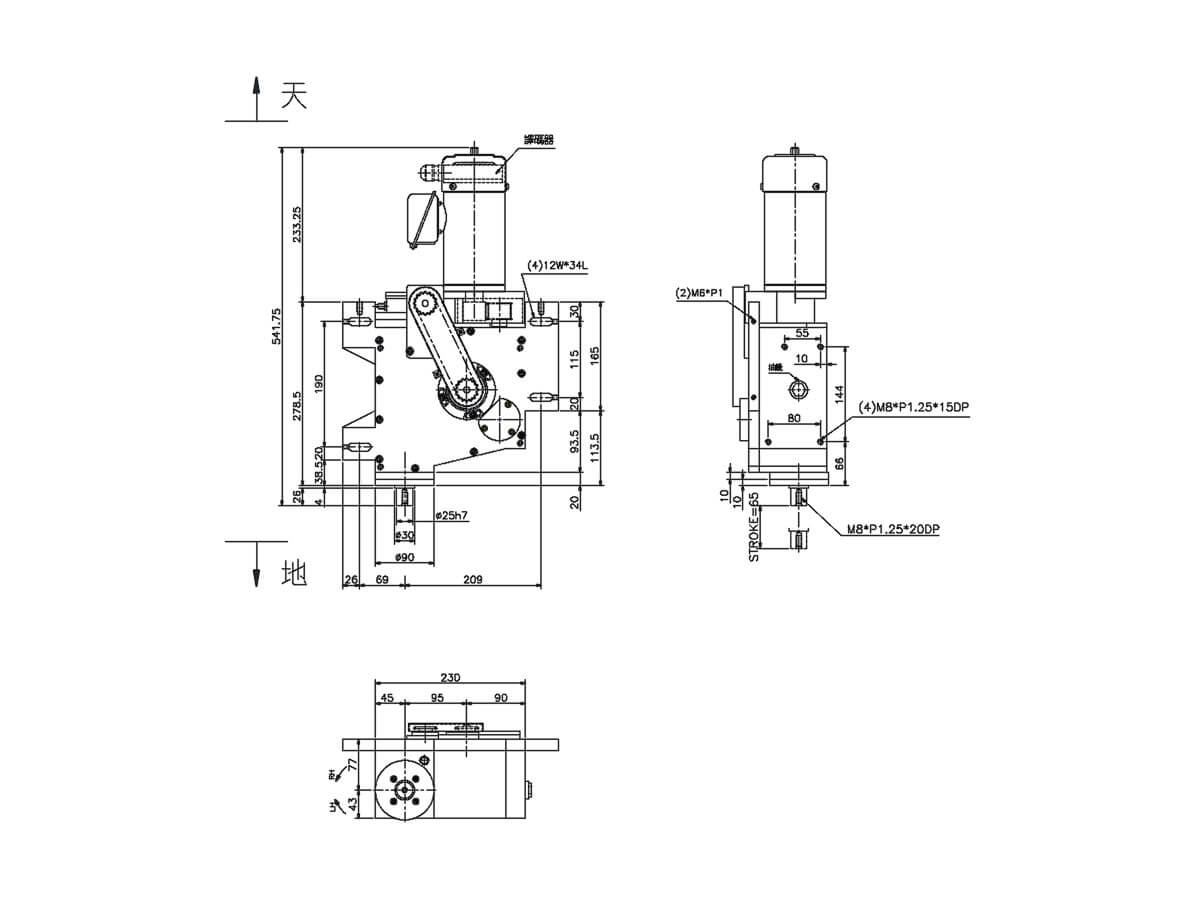

Outline Drawing

renishaw-acu250-r-asis-corrected

Video

ContRoller-Types

Movement Timing Illustration



size-drawings-acu250-en-01

Angle for cutter change can be defined per customer's need (60°~ 90°)

top-view-drawing-acu250-02

We can customize strokes according to different types of tool holders

A025(ISO25 Tool Holder) Instant Loading Diagram

Tool Change Arm T-to-T Distance/ Tool Arm Weight Reference
Tool Weight
Unilateral Loading of Tool
Motor Frequency Belts Compatible With
1/4 HP
ATC Time Interval
For Cutter
0.5Kgx2 60Hz 1:15 0.52sec
1Kgx2 60Hz 1:15 0.52sec
1.5Kgx2 60Hz 1:15 0.52sec
2Kgx2 60Hz 1:15 0.52sec
2.5Kgx2 50Hz 1:15 0.62sec
Tool Weight
Unilateral Loading of Tool
Motor Frequency Belts Compatible With
1/4 HP
ATC Time Interval
For Cutter
0.5Kgx2 60Hz 1:15 0.52sec
1Kgx2 60Hz 1:15 0.52sec
1.5Kgx2 50Hz 1:15 0.62sec
Tool Weight
Unilateral Loading of Tool
Motor Frequency Belts Compatible With
1/4 HP
ATC Time Interval
For Cutter
0.5Kgx2 60Hz 1:15 0.52sec
1Kgx2 50Hz 1:15 0.62sec
