Synchronized 4th Rotary Tables for Multiple Workpieces RD Series

RD140T2

Specifications

ITEM UNIT RD140T2
Table diameter mm Ø140
Table center Height mm 140
Datum hole mm Ø35H7
Through-hole mm Ø15H7
T-slot on table mm 12H7
Datum positioning key mm 18h7
Servo motor (Option) FANUC α iF8 Motor interface
□130
Mitsubishi 1FK7063
Siemens HF-154T □126
Heidenhain QSY116J □116
Total reduction ratio -- 30
Allowable cutting torque kg-m 20
Max. rpm rpm 100
Clamp power source -- Pneumatic/Hydraulic
Clamp pressure kg / cm² 6/35
Clamp torque kg-m 9/20
Index accuracy sec 25
Repetition accuracy sec 7
Allowable work-piece load Level (kg) 60
Vertical (kg) 120
ITEM UNIT RD140T3
Table diameter mm Ø140
Table center Height mm 140
Datum hole mm Ø35H7
Through-hole mm Ø15H7
T-slot on table mm 12H7
Datum positioning key mm 18h7
Servo motor (Option) FANUC α iF8 Motor interface
□130
Mitsubishi 1FK7063
Siemens HF-154T □126
Heidenhain QSY116J □116
Total reduction ratio -- 30
Allowable cutting torque kg-m 20
Max. rpm rpm 100
Clamp power source -- Pneumatic/Hydraulic
Clamp pressure kg / cm² 6/35
Clamp torque kg-m 9/20
Index accuracy sec 25
Repetition accuracy sec 7
Allowable work-piece load Level (kg) 60
Vertical (kg) 120
ITEM UNIT RD140T4
Table diameter mm Ø140
Table center Height mm 140
Datum hole mm Ø35H7
Through-hole mm Ø15H7
T-slot on table mm 12H7
Datum positioning key mm 18h7
Servo motor (Option) FANUC α iF8 Motor interface
□130
Mitsubishi 1FK7063
Siemens HF-154T □126
Heidenhain QSY116J □116
Total reduction ratio -- 30
Allowable cutting torque kg-m 20
Max. rpm rpm 100
Clamp power source -- Pneumatic/Hydraulic
Clamp pressure kg / cm² 6/35
Clamp torque kg-m 9/20
Index accuracy sec 25
Repetition accuracy sec 7
Allowable work-piece load Level (kg) 60
Vertical (kg) 120

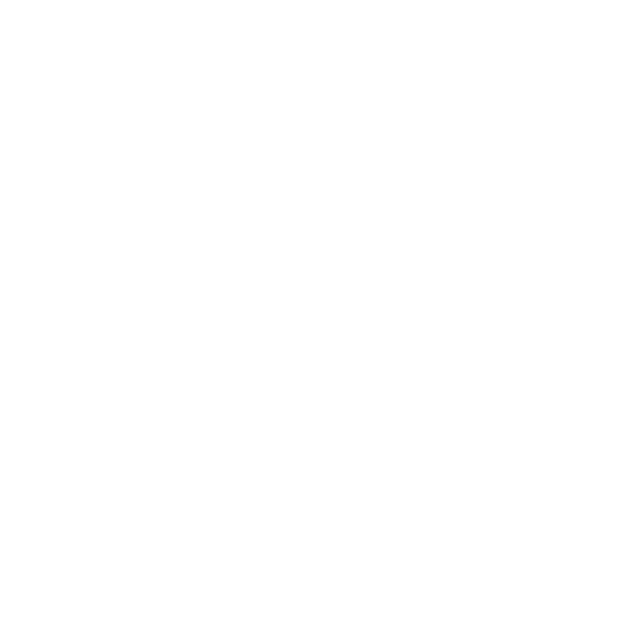

Size Drawings

RD140T2
