Roller cam rotary table RD Series

RD320R

Specifications

ITEM UNIT RD320R
Table diameter mm 320
Center height mm 210
Center bore Front spindle hole mm 120H7
Through hole mm 90H7
T slot width mm 14H7
Guide block width mm(h7) 18h7
Servo Motor FANUC α αiF12 □176
β βiS22 □176
Mitsubushi HF-204S □176
Motor interface Siemens 1FK7083 □155
Gear ratio -- 1/72
Table max. r.p.m. 41
Degree mini. Degree 0.001
Accuracy Second 12
Forward & Reverse repet.accuracy Second 4
Allowable cutting torque 【kgf-m】 【110】
N-m 1082
瞬間最大切削扭力 【kgf-m】 【176】
N-m 1731
Clamp system Pneumatic/ Hydraulic Hydraulic
Clamp output at brake kg-cm² 30
Clamp output torque at brake 【kgf-m】 【225】
N-m 2205
Allowable work weight (Radial) Straight kg 260
(Tailstock applied) kg 520
(Axial) Flat kg 520
Allowable load
(table clamped)
F Kgf 5200
N 50960
FxL Kgf-m 【225】
N-m 2205
FxL Kgf-m 635
N-m 6223
Weight kg 186
Allowable inertia force kg-m² 10.4

Size Drawings

RD320R

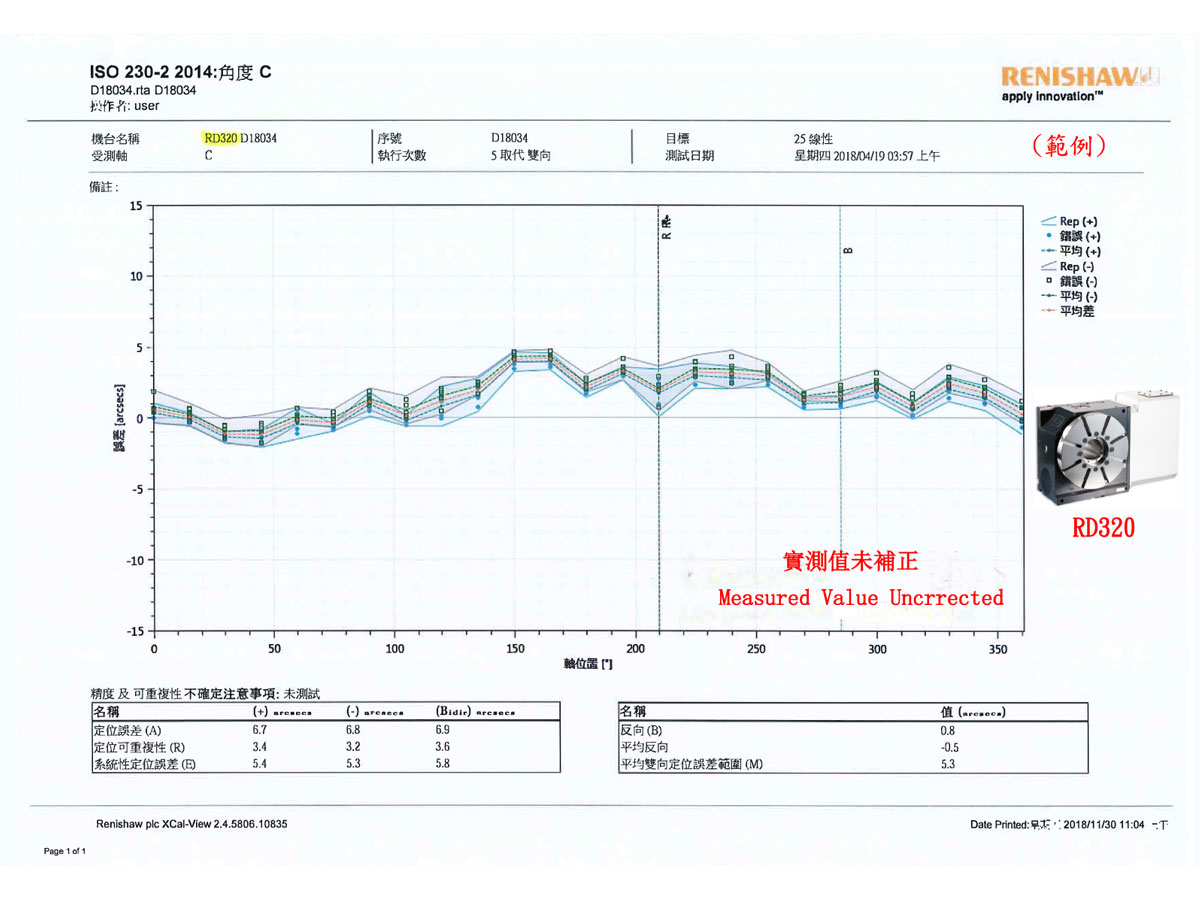

Laser Accuracy Inspection Form

renishaw-measured-value-uncrrected-rd320
