Horizontal Tool Change

BT50 Series

A507 - Opposite Tool Change

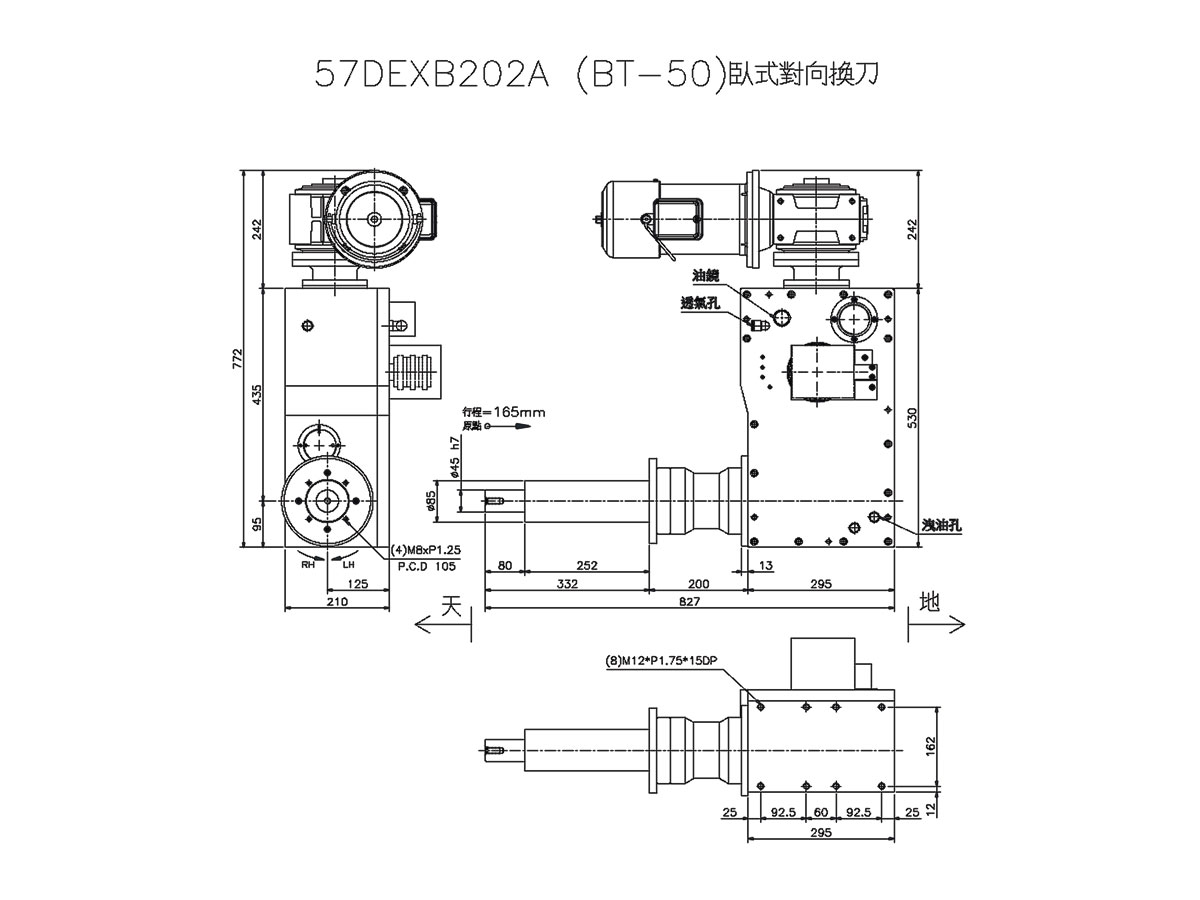

Outline Drawing

renishaw-acu250-r-asis-corrected

ContRoller-Types

Movement Timing Illustration



size-drawings-acu250-en-01

Angle for cutter change can be defined per customer's need (60°~ 90°)

top-view-drawing-acu250-02

We can customize strokes according to different types of tool holders

A507 Instant Loading Diagram

Tool Change Arm T-to-T Distance/ Tool Arm Weight Reference
Tool Weight
Bilateral Loading of Tools
Motor Frequency Compatible with
1.5HP motors
ATC Time Interval
For Cutter
15Kg*2 50Hz 1:12 2.48 sec
60Hz 1:12 2.09 sec
20Kg*2 50Hz 1:12 2.48 sec
60Hz 1:12 2.09 sec
25Kg*2 50Hz 1:12 2.48 sec
60Hz 1:12 2.09 sec
30Kg*2 50Hz 1:12 2.48 sec
60Hz 1:12 2.09 sec
35Kg*2 50Hz 1:12 2.48 sec
60Hz 1:14 2.44 sec
40Kg*2 50Hz 1:12 2.48 sec
60Hz 1:14 2.44 sec
Tool Weight
Bilateral Loading of Tools
Motor Frequency Compatible with
1.5HP motors
ATC Time Interval
For Cutter
15Kg*2 50Hz 1:12 2.48 sec
60Hz 1:12 2.09 sec
20Kg*2 50Hz 1:12 2.48 sec
60Hz 1:12 2.09 sec
25Kg*2 50Hz 1:12 2.48 sec
60Hz 1:14 2.44 sec
30Kg*2 50Hz 1:12 2.48 sec
60Hz 1:14 2.44 sec
35Kg*2 50Hz 1:14 2.89 sec
60Hz 1:16 2.79 sec
40Kg*2 50Hz 1:14 2.89 sec
60Hz 1:16 2.79 sec
Tool Weight
Bilateral Loading of Tools
Motor Frequency Compatible with
1.5HP motors
ATC Time Interval
For Cutter
15Kg*2 50Hz 1:12 2.48 sec
60Hz 1:14 2.44 sec
20Kg*2 50Hz 1:12 2.48 sec
60Hz 1:14 2.44 sec
25Kg*2 50Hz 1:14 2.89 sec
60Hz 1:16 2.79 sec
30Kg*2 50Hz 1:14 2.89 sec
60Hz 1:16 2.79 sec
Tool Weight
Bilateral Loading of Tools
Motor Frequency Compatible with
1.5HP motors motors
ATC Time Interval
For Cutter
15Kg*2 50Hz 1:12 2.48 sec
60Hz 1:14 2.44 sec
20Kg*2 50Hz 1:14 2.89 sec
60Hz 1:16 2.79 sec
25Kg*2 50Hz 1:14 2.89 sec
60Hz 1:20 3.48 sec
Tool Weight
Bilateral Loading of Tools
Motor Frequency Compatible with
1.5HP motors
ATC Time Interval
For Cutter
15Kg*2 50Hz 1:14 2.89 sec
60Hz 1:16 2.79 sec
20Kg*2 50Hz 1:14 2.89 sec
60Hz 1:20 3.48 sec
25Kg*2 50Hz 1:16 3.31 sec
60Hz 1:20 3.48 sec
Tool Weight
Bilateral Loading of Tools
Motor Frequency Compatible with
1.5HP motors
ATC Time Interval
For Cutter
15Kg*2 50Hz 1:14 2.89 sec
60Hz 1:16 2.79 sec
20Kg*2 50Hz 1:16 3.31 sec
60Hz 1:20 3.48 sec
Tool Weight
Bilateral Loading of Tools
Motor Frequency Compatible with
1.5HP motors
ATC Time Interval
For Cutter
15Kg*2 50Hz 1:16 3.31 sec
60Hz 1:20 3.48 sec
20Kg*2 50Hz 1:16 3.31 sec
60Hz 1:20 3.48 sec
