ATC Systems

Horizontal Tool Change

BT50 Series

A505 - Opposite Tool Change

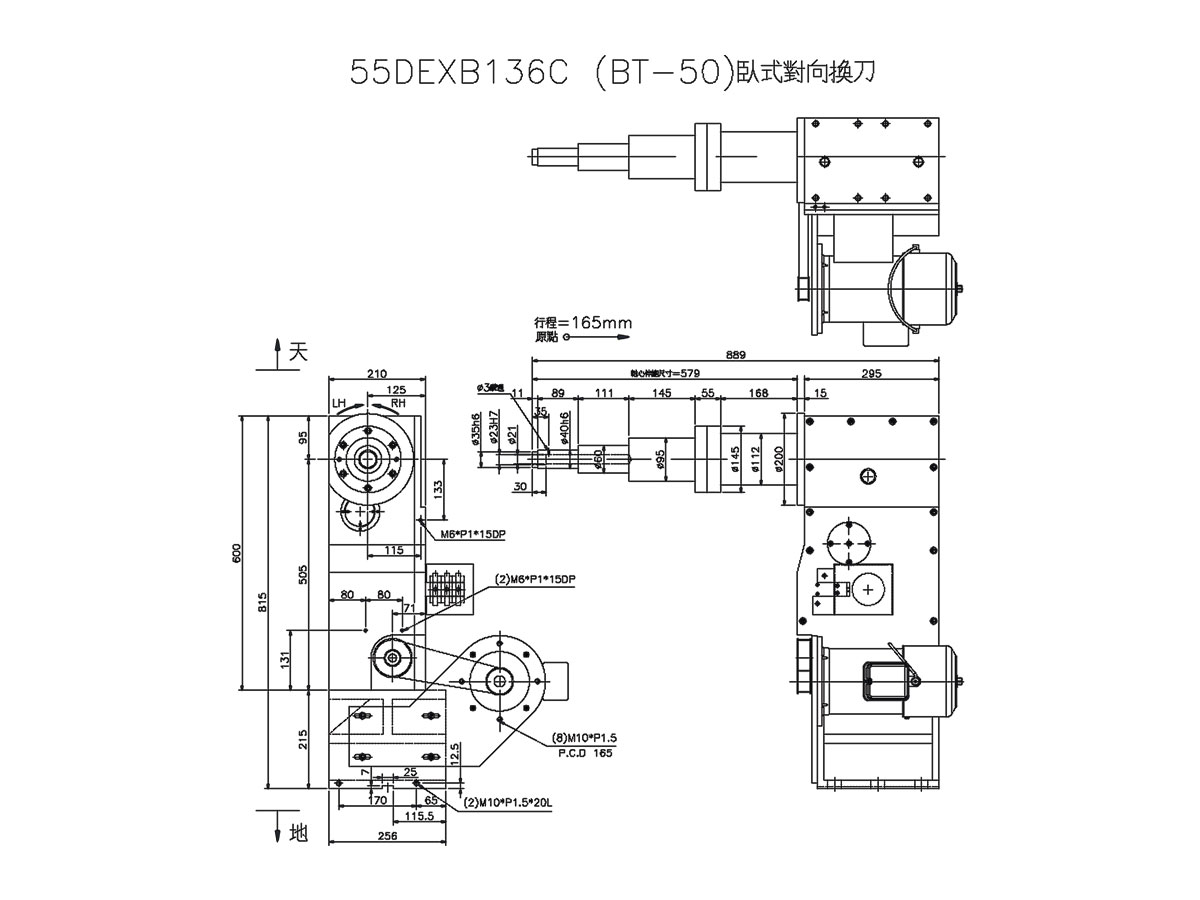

Outline Drawing

renishaw-acu250-r-asis-corrected

Video

ContRoller-Types

Movement Timing Illustration



size-drawings-acu250-en-01

Angle for cutter change can be defined per customer's need (60°~ 90°)

top-view-drawing-acu250-02

We can customize strokes according to different types of tool holders

A505 Instant Loading Diagram

Tool Change Arm T-to-T Distance/ Tool Arm Weight Reference
Tool Weight
Bilateral Loading of Tools
Motor Frequency Belts Compatible with
1.5HP
ATC Time Interval
For Cutter
15Kgx2 50Hz 38:45 2.45 sec
60Hz 38:45 2.07 sec
20Kgx2 50Hz 38:45 2.45 sec
60Hz 38:45 2.07 sec
25Kgx2 50Hz 38:45 2.45 sec
60Hz 38:50 2.3 sec
30Kgx2 50Hz 38:45 2.45 sec
60Hz 35:50 2.49 sec
35Kgx2 50Hz 38:50 2.72 sec
60Hz 35:50 2.49 sec
40Kgx2 50Hz 38:50 2.72 sec
60Hz 30:48 2.79 sec
Tool Weight
Bilateral Loading of Tools
Motor Frequency Belts Compatible with
1.5HP
ATC Time Interval
For Cutter
15Kgx2 50Hz 38:45 2.45 sec
60Hz 38:50 2.3 sec
20Kgx2 50Hz 38:45 2.45 sec
60Hz 35:50 2.49 sec
25Kgx2 50Hz 38:50 2.72 sec
60Hz 30:48 2.79 sec
30Kgx2 50Hz 38:50 2.72 sec
60Hz 30:48 2.79 sec
35Kgx2 50Hz 35:50 2.96 sec
60Hz 30:50 2.9 sec
40Kgx2 50Hz 30:48 3.31 sec
60Hz 27:50 3.23 sec
Tool Weight
Bilateral Loading of Tools
Motor Frequency Belts Compatible with
1.5HP
ATC Time Interval
For Cutter
15Kgx2 50Hz 38:50 2.72 sec
60Hz 35:50 2.49 sec
20Kgx2 50Hz 38:50 2.72 sec
60Hz 30:48 2.79 sec
25Kgx2 50Hz 35:50 2.96 sec
60Hz 27:50 3.23 sec
30Kgx2 50Hz 30:48 3.31 sec
60Hz 27:50 3.23 sec
Tool Weight
Bilateral Loading of Tools
Motor Frequency Belts Compatible with
1.5HP
ATC Time Interval
For Cutter
15Kgx2 50Hz 35:50 2.96 sec
60Hz 30:50 2.9 sec
20Kgx2 50Hz 30:48 3.31 sec
60Hz 27:50 3.23 sec
25Kgx2 50Hz 30:50 3.45 sec
60Hz 30:67 3.9 sec
Tool Weight
Bilateral Loading of Tools
Motor Frequency Belts Compatible with
1.5HP
ATC Time Interval
For Cutter
15Kgx2 50Hz 30:48 3.31 sec
60Hz 27:50 3.23 sec
20Kgx2 50Hz 30:50 3.45 sec
60Hz 30:67 3.9 sec
25Kgx2 50Hz 27:50 3.83 sec
60Hz 30:67 3.9 sec
Tool Weight
Bilateral Loading of Tools
Motor Frequency Belts Compatible with
1.5HP
ATC Time Interval
For Cutter
15Kgx2 50Hz 30:50 3.45 sec
60Hz 30:67 3.9 sec
20Kgx2 50Hz 27:50 3.83 sec
60Hz 30:67 3.9 sec
Tool Weight
Bilateral Loading of Tools
Motor Frequency Belts Compatible with
1.5HP
ATC Time Interval
For Cutter
15Kgx2 50Hz 27:50 3.83 sec
60Hz 30:67 3.9 sec
20Kgx2 50Hz 27:50 3.83 sec
60Hz 30:67 3.9 sec
