Intermittent Precision Index

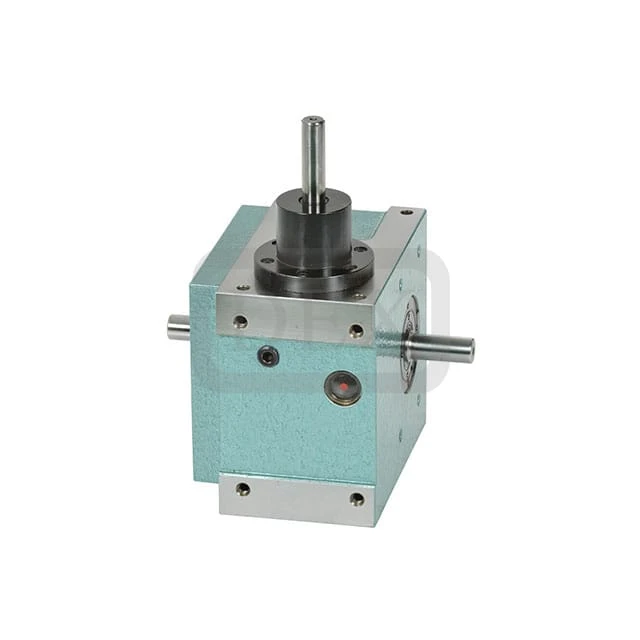

FN Combined Lifting Type6FN
INQUIREApplications
Combined Type: Lifting motion with continuous/
reciprocating pick-up or insertion.
Examples: computer & consumer electronics &
Comm. industry, CD production facilities.
Properties
Indexing cam and lifting flat cam design; split-lifting
or track-dividing cam & lifting plane cam design.
Lowest starting point tolerance of ±0.01mm.
Indexing accuracy: ±15~30sec
Types of Movements
Dimensional Drawings

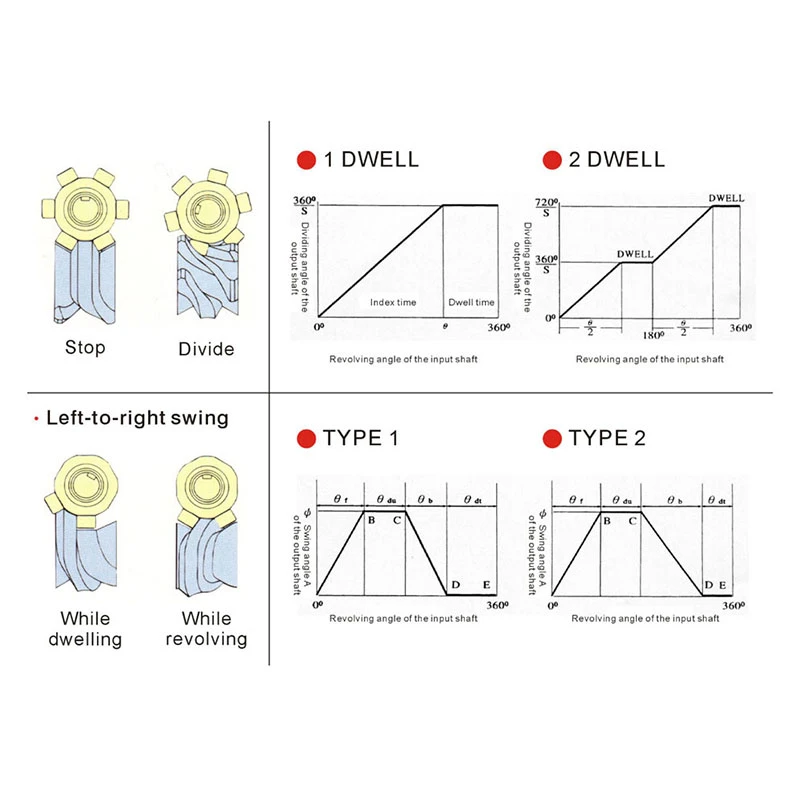

Movement Sequence Illustration

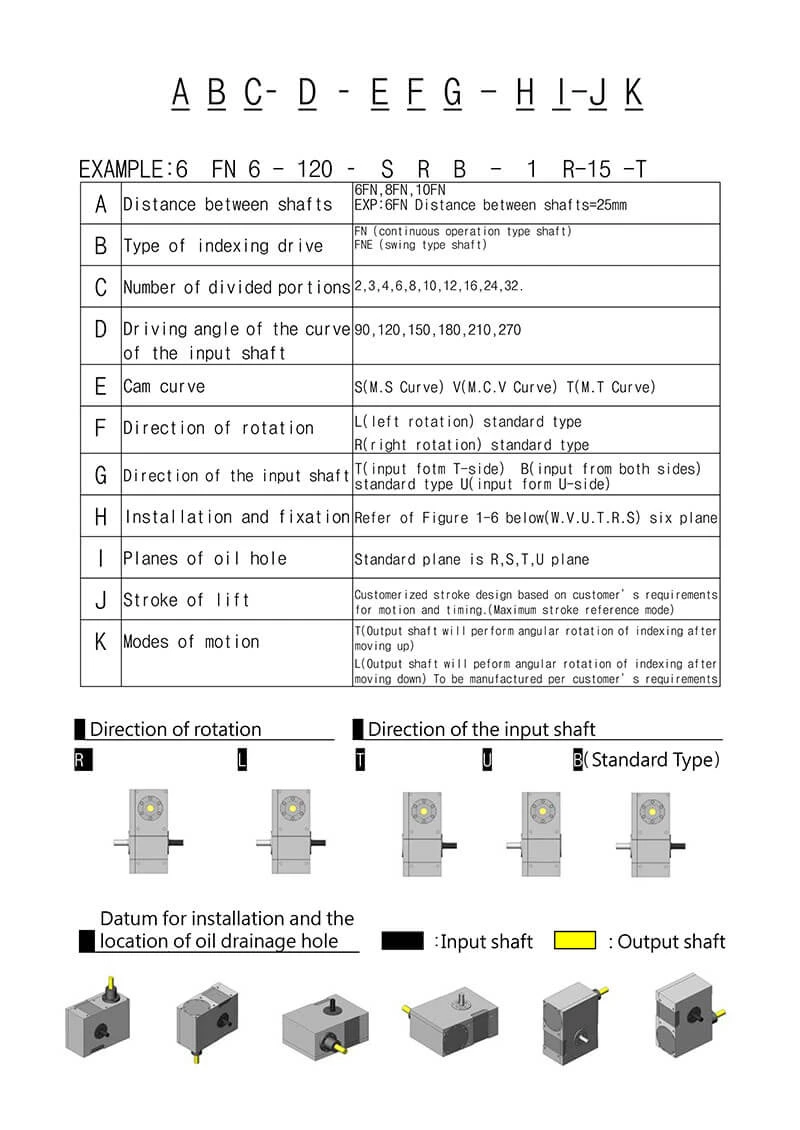

Specification Selection Explanations

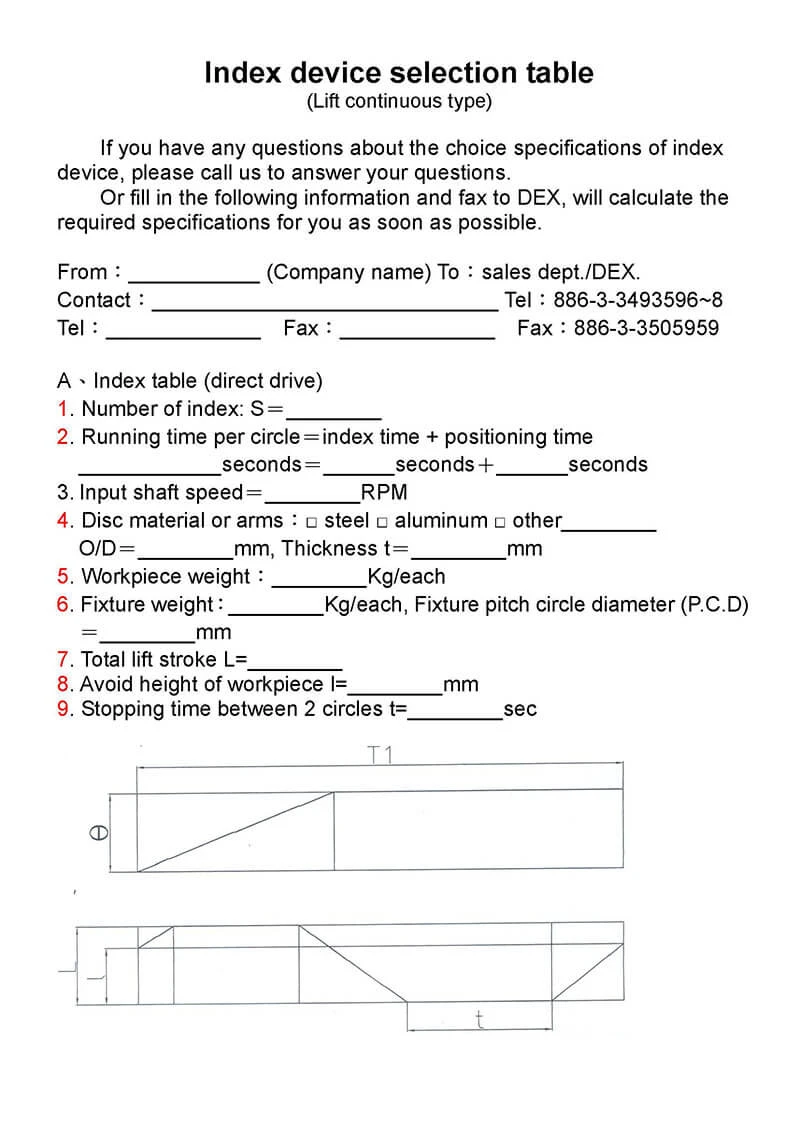

Diagram of Technical Support for Specifications
