intermittent-precision-index-separated-lifting-type-t090

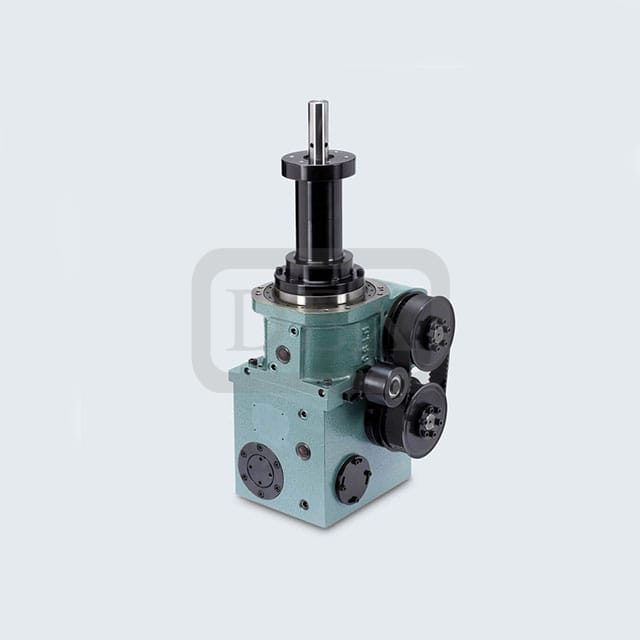

Intermittent Precision Index

T Separated Lifting Type

T090

Applications Multiple indexing.
Lifting/Indexing Separated Type: Running disc with
continuous/reciprocating shaft lifting for pickup or
insertion.
Examples: Sensor-equipped sorting machines,
zipper assembly machines.
Properties Complex indexing & lifting by indexing (top) and
lifting cam (bottom).
Indexing accuracy of ±15~45sec
Types of
Movements
types-of-movements
Dimensional Drawings
dimensional-drawings
Movement Sequence Illustration
movement-sequence-illustration
Specification Selection Explanations
specification-selection-explanations
Diagram of Technical Support for Specifications
diagram-of-technical-support-for-specifications
