Intermittent Precision Index
P Combined Type
P250
| Applications | Better fastening rigidity, heavy swing equipment with fewer indexing increments (one stop). |
|---|---|
| Properties | Combined cam blades for improved locking capability, input shaft parallel to output shaft. |
| Types of Movements |
 |

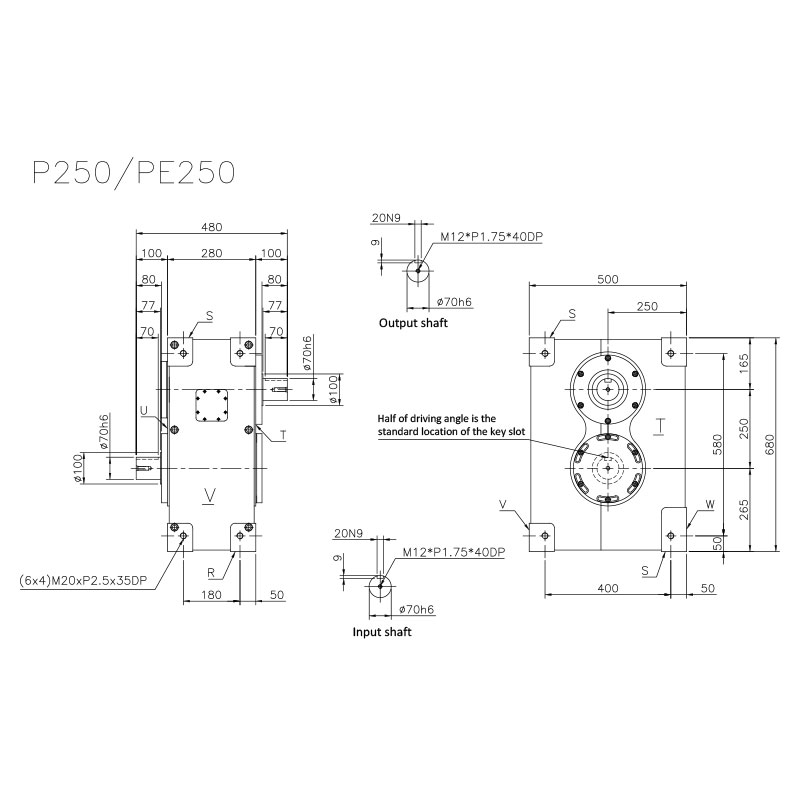

Dimensional Drawings

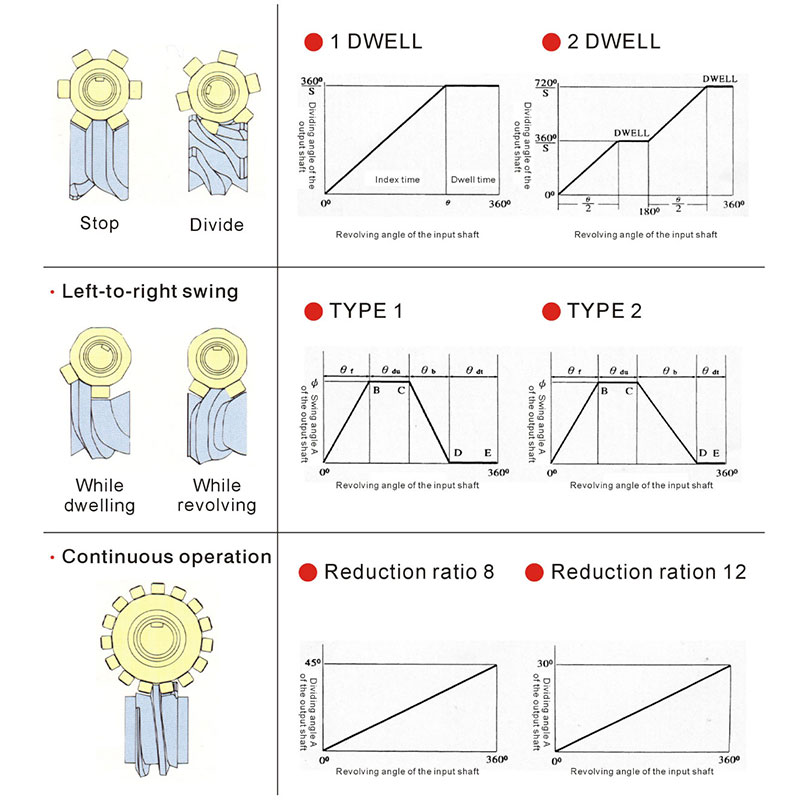

Movement Sequence Illustration

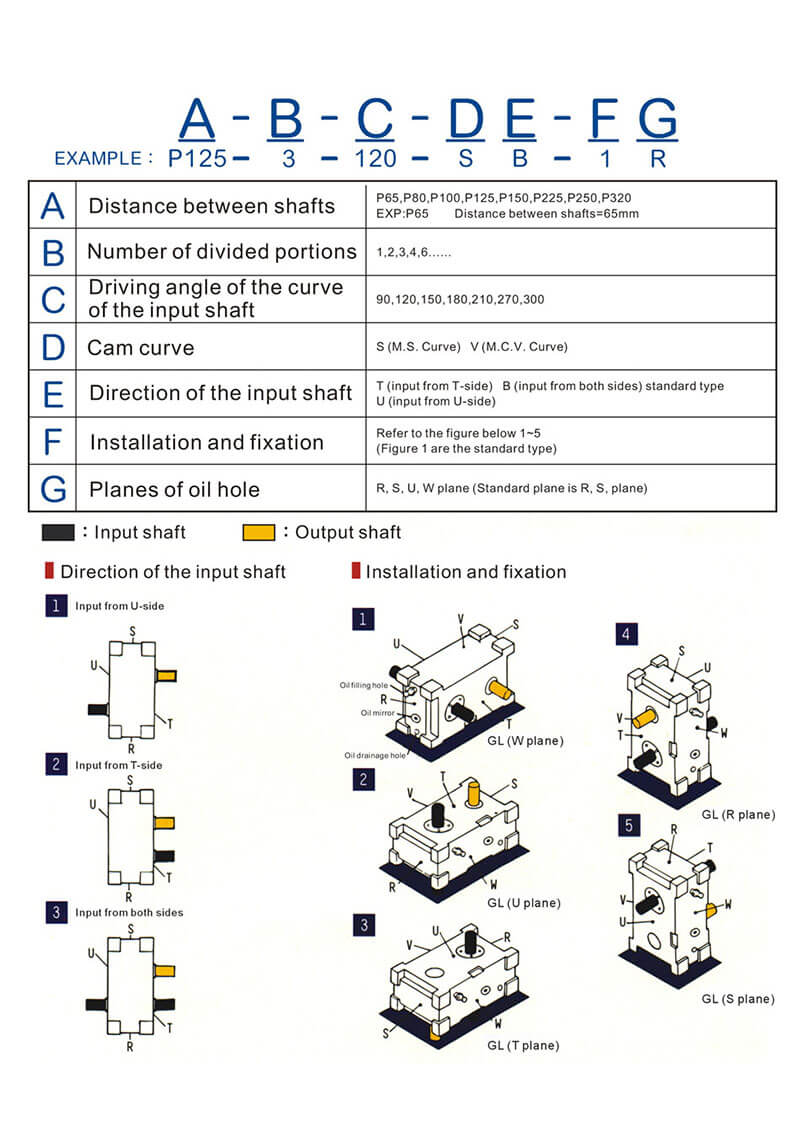

Specification Selection Explanations

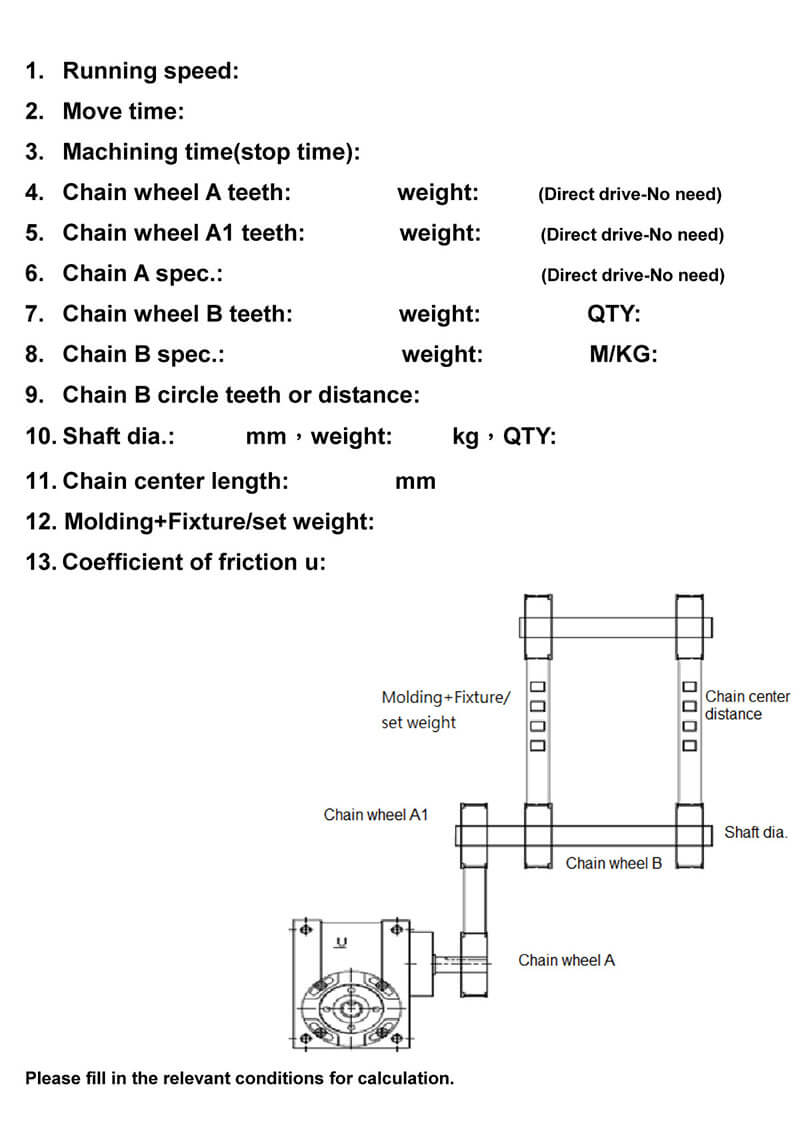

Diagram of Technical Support for Specifications
