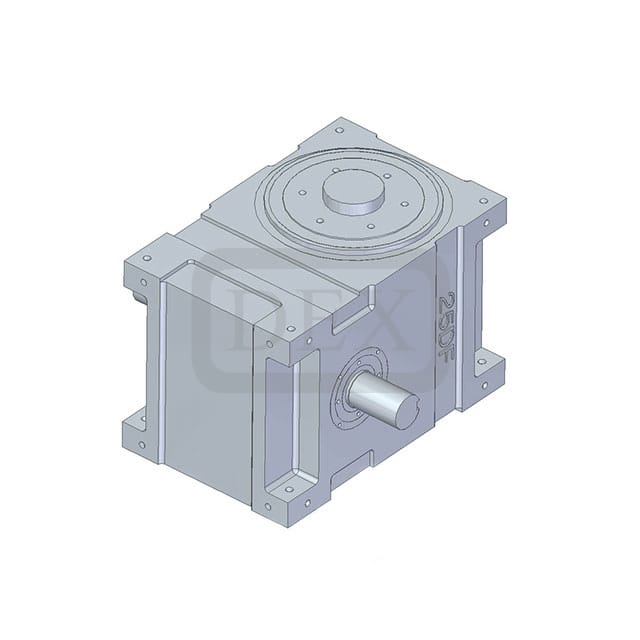

Intermittent Precision Index

DF Flange Type

25DF

Applications Special purpose machinery & equipment
Properties Indexing accuracy of ±10~75sec.
Types of
Movements
types-of-movements
I.D. Chart
Types 4.5D 6D 7D 8D 11D 14D 18D 25D
I.D. Ø8 Ø20 Ø20 Ø30 Ø45 Ø50 Ø60 Ø60
