a47s-wheel-sensor

ATC Systems

Horizontal Tool Change

BT40 Series

A47S

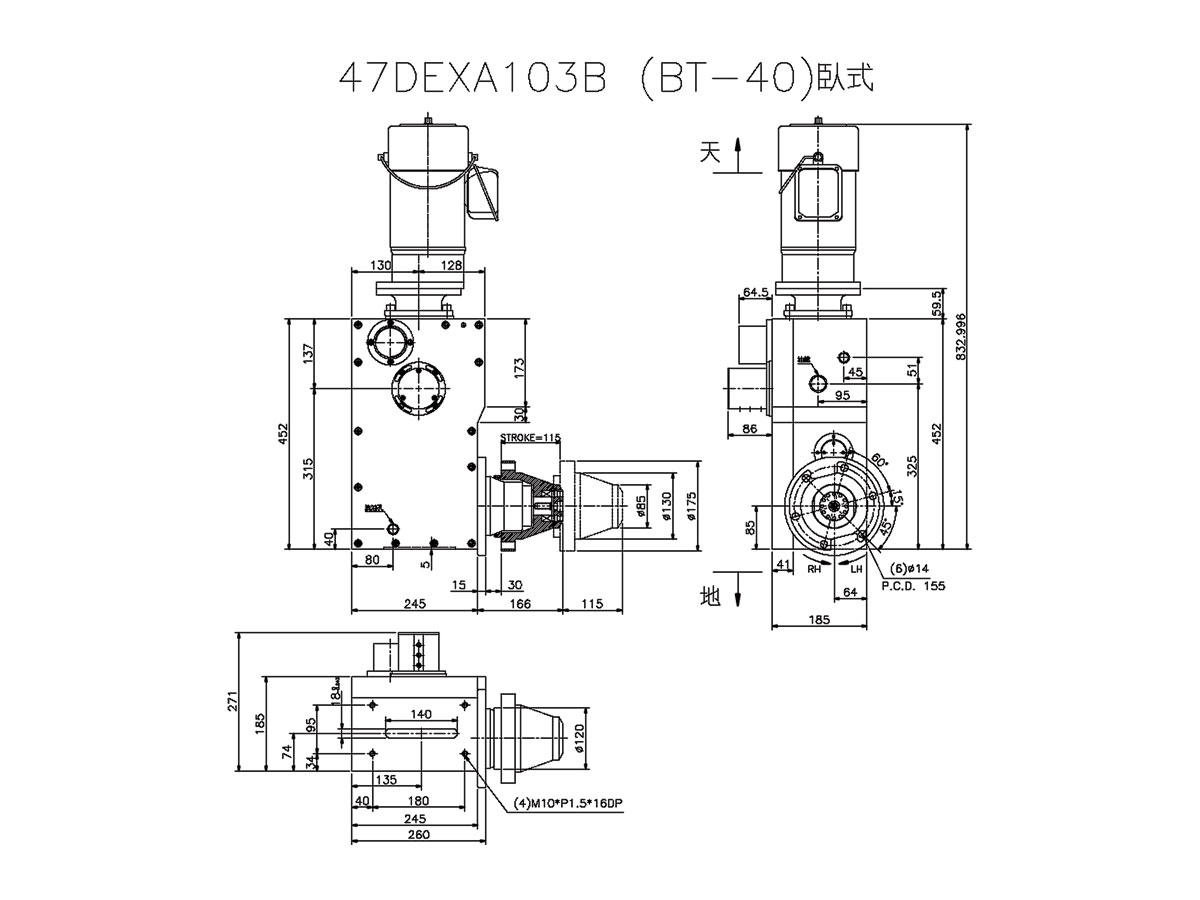

Outline Drawing

renishaw-acu250-r-asis-corrected

ContRoller-Types

Movement Timing Illustration



size-drawings-acu250-en-01

Angle for cutter change can be defined per customer's need (60°~ 90°)

top-view-drawing-acu250-02

We can customize strokes according to different types of tool holders

A47S Instant Loading Diagram

Tool Change Arm T-to-T Distance/ Tool Arm Weight Reference
Tool Weight
Bilateral Loading of Tools
Motor Frequency 1HP Worm Gear Ratio ATC Time Interval
For Cutter
4Kg*2 70Hz 1:32 0.96 sec
5Kg*2 70Hz 1:32 0.96 sec
6Kg*2 70Hz 1:32 0.96 sec
7Kg*2 70Hz 1:32 0.96 sec
8Kg*2 60Hz 1:32 1.12 sec
Tool Weight
Bilateral Loading of Tools
Motor Frequency 1HP Worm Gear Ratio ATC Time Interval
For Cutter
4Kg*2 70Hz 1:32 0.96 sec
5Kg*2 70Hz 1:32 0.96 sec
6Kg*2 60Hz 1:32 1.12 sec
7Kg*2 60Hz 1:32 1.12 sec
8Kg*2 60Hz 1:32 1.12 sec
Tool Weight
Bilateral Loading of Tools
Motor Frequency 1HP Worm Gear Ratio ATC Time Interval
For Cutter
4Kg*2 60Hz 1:32 1.12 sec
5Kg*2 60Hz 1:32 1.12 sec
6Kg*2 50Hz 1:32 1.34 sec
7Kg*2 50Hz 1:32 1.34 sec
8Kg*2 50Hz 1:32 1.34 sec
Tool Weight
Bilateral Loading of Tools
Motor Frequency 1HP Worm Gear Ratio ATC Time Interval
For Cutter
4Kg*2 50Hz 1:32 1.34 sec
5Kg*2 50Hz 1:32 1.34 sec
6Kg*2 50Hz 1:32 1.34 sec
7Kg*2 45Hz 1:32 1.49 sec
8Kg*2 45Hz 1:32 1.49 sec
Tool Change Arm T-to-T Distance/ Tool Arm Weight Reference
Tool Weight
Bilateral Loading of Tools
Motor Frequency 1HP Worm Gear Ratio ATC Time Interval
For Cutter
4Kg*2 50Hz 1:32 1.34 sec
5Kg*2 50Hz 1:32 1.34 sec
6Kg*2 45Hz 1:32 1.49 sec
7Kg*2 45Hz 1:32 1.49 sec
8Kg*2 40Hz 1:32 1.67 sec
Tool Weight
Bilateral Loading of Tools
Motor Frequency 1HP Worm Gear Ratio ATC Time Interval
For Cutter
4Kg*2 45Hz 1:32 1.49 sec
5Kg*2 45Hz 1:32 1.49 sec
6Kg*2 40Hz 1:32 1.67 sec
7Kg*2 40Hz 1:32 1.67 sec
Tool Weight
Bilateral Loading of Tools
Motor Frequency 1HP Worm Gear Ratio ATC Time Interval
For Cutter
4Kg*2 40Hz 1:32 1.67 sec
5Kg*2 40Hz 1:32 1.67 sec
Tool Weight
Bilateral Loading of Tools
Motor Frequency 1HP Worm Gear Ratio ATC Time Interval
For Cutter
4Kg*2 40Hz 1:32 1.67 sec
