ATC Systems

Horizontal Tool Change

BT40 Series

A407 - Horizontal Same-direction

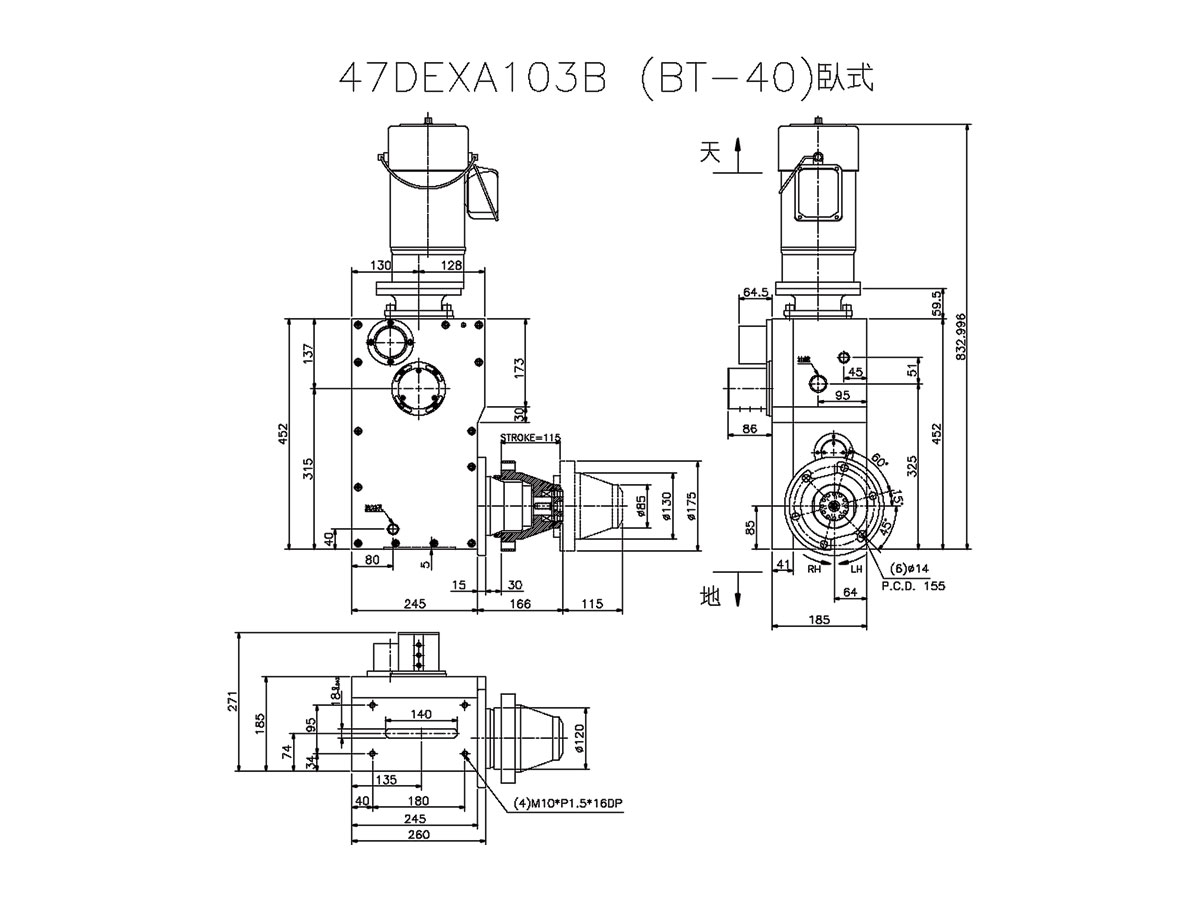

Outline Drawing

renishaw-acu250-r-asis-corrected

ContRoller-Types

Movement Timing Illustration



size-drawings-acu250-en-01

Angle for cutter change can be defined per customer's need (60°~ 90°)

top-view-drawing-acu250-02

We can customize strokes according to different types of tool holders

A407 Instant Loading Diagram

Tool Change Arm T-to-T Distance/ Tool Arm Weight Reference
Tool Weight
Bilateral Loading of Tools
Motor Frequency Compatible with
1 HP motors
ATC Time Interval
For Cutter
4Kg*2 50Hz 1:7 1.36 sec
60Hz 1:7 1.14 sec
5Kg*2 50Hz 1:7 1.36 sec
60Hz 1:7 1.14 sec
6Kg*2 50Hz 1:7 1.36 sec
60Hz 1:7 1.14 sec
7Kg*2 50Hz 1:7 1.36 sec
60Hz 1:7 1.14 sec
8Kg*2 50Hz 1:7 1.36 sec
60Hz 1:7 1.14 sec
Tool Weight
Bilateral Loading of Tools
Motor Frequency Compatible with
1 HP motors
ATC Time Interval
For Cutter
4Kg*2 50Hz 1:7 1.36 sec
60Hz 1:7 1.14 sec
5Kg*2 50Hz 1:7 1.36 sec
60Hz 1:7 1.14 sec
6Kg*2 50Hz 1:7 1.36 sec
60Hz 1:7 1.14 sec
7Kg*2 50Hz 1:7 1.36 sec
60Hz 1:7 1.14 sec
8Kg*2 50Hz 1:7 1.36 sec
60Hz 1:7 1.14 sec
Tool Weight
Bilateral Loading of Tools
Motor Frequency Compatible with
1 HP motors
ATC Time Interval
For Cutter
4Kg*2 50Hz 1:7 1.36 sec
60Hz 1:7 1.14 sec
5Kg*2 50Hz 1:7 1.36 sec
60Hz 1:7 1.14 sec
6Kg*2 50Hz 1:7 1.36 sec
60Hz 1:8 1.31 sec
7Kg*2 50Hz 1:7 1.36 sec
60Hz 1:8 1.31 sec
8Kg*2 50Hz 1:7 1.36 sec
60Hz 1:8 1.31 sec
Tool Weight
Bilateral Loading of Tools
Motor Frequency Compatible with
1 HP motors
ATC Time Interval
For Cutter
4Kg*2 50Hz 1:7 1.36 sec
60Hz 1:8 1.31 sec
5Kg*2 50Hz 1:7 1.36 sec
60Hz 1:8 1.31 sec
6Kg*2 50Hz 1:7 1.36 sec
60Hz 1:8 1.31 sec
7Kg*2 50Hz 1:7 1.36 sec
60Hz 1:9 1.47 sec
8Kg*2 50Hz 1:8 1.55 sec
60Hz 1:9 1.47 sec
Tool Weight
Bilateral Loading of Tools
Motor Frequency Compatible with
1 HP motors
ATC Time Interval
For Cutter
4Kg*2 50Hz 1:7 1.36 sec
60Hz 1:8 1.31 sec
5Kg*2 50Hz 1:7 1.36 sec
60Hz 1:9 1.47 sec
6Kg*2 50Hz 1:8 1.55 sec
60Hz 1:9 1.47 sec
7Kg*2 50Hz 1:8 1.55 sec
60Hz 1:10 1.64 sec
8Kg*2 50Hz 1:8 1.55 sec
60Hz 1:10 1.64 sec
Tool Weight
Bilateral Loading of Tools
Motor Frequency Compatible with
1 HP motors
ATC Time Interval
For Cutter
4Kg*2 50Hz 1:8 1.55 sec
60Hz 1:9 1.47 sec
5Kg*2 50Hz 1:8 1.55 sec
60Hz 1:9 1.47 sec
6Kg*2 50Hz 1:8 1.55 sec
60Hz 1:10 1.64 sec
7Kg*2 50Hz 1:9 1.75 sec
60Hz 1:10 1.64 sec
8Kg*2 50Hz 1:9 1.75 sec
60Hz 1:12 1.96 sec
Tool Weight
Bilateral Loading of Tools
Motor Frequency Compatible with
1 HP motors
ATC Time Interval
For Cutter
4Kg*2 50Hz 1:8 1.55 sec
60Hz 1:10 1.64 sec
5Kg*2 50Hz 1:9 1.75 sec
60Hz 1:10 1.64 sec
6Kg*2 50Hz 1:9 1.75 sec
60Hz 1:12 1.96 sec
7Kg*2 50Hz 1:10 1.94 sec
60Hz 1:12 1.96 sec
8Kg*2 50Hz 1:10 1.94 sec
60Hz 1:12 1.96 sec
Tool Change Arm T-to-T Distance/ Tool Arm Weight Reference
Tool Weight
Bilateral Loading of Tools
Motor Frequency Compatible with
1 HP motors
ATC Time Interval
For Cutter
4Kg*2 50Hz 1:9 1.75 sec
60Hz 1:10 1.64 sec
5Kg*2 50Hz 1:9 1.75 sec
60Hz 1:12 1.96 sec
6Kg*2 50Hz 1:10 1.94 sec
60Hz 1:12 1.96 sec
7Kg*2 50Hz 1:10 1.94 sec
60Hz 1:12 1.96 sec
8Kg*2 50Hz 1:12 2.33 sec
60Hz 1:15 2.45 sec
Tool Weight
Bilateral Loading of Tools
Motor Frequency Compatible with
1 HP motors
ATC Time Interval
For Cutter
4Kg*2 50Hz 1:10 1.94 sec
60Hz 1:12 1.96 sec
5Kg*2 50Hz 1:10 1.94 sec
60Hz 1:12 1.96 sec
6Kg*2 50Hz 1:12 2.33 sec
60Hz 1:15 2.45 sec
7Kg*2 50Hz 1:12 2.33 sec
60Hz 1:15 2.45 sec
8Kg*2 50Hz 1:12 2.33 sec
60Hz 1:15 2.45 sec
Tool Weight
Bilateral Loading of Tools
Motor Frequency Compatible with
1 HP motors
ATC Time Interval
For Cutter
4Kg*2 50Hz 1:12 2.33 sec
60Hz 1:12 1.96 sec
5Kg*2 50Hz 1:12 2.33 sec
60Hz 1:15 2.45 sec
6Kg*2 50Hz 1.12 2.33 sec
60Hz 1:15 2.45 sec
7Kg*2 50Hz 1:12 2.33 sec
60Hz 1:15 2.45 sec
8Kg*2 50Hz 1:15 2.91 sec
60Hz 1:15 2.45 sec
Tool Weight
Bilateral Loading of Tools
Motor Frequency Compatible with
1 HP motors
ATC Time Interval
For Cutter
4Kg*2 50Hz 1:12 2.33 sec
60Hz 1:15 2.45 sec
5Kg*2 50Hz 1:12 2.33 sec
60Hz 1:15 2.45 sec
6Kg*2 50Hz 1:12 2.33 sec
60Hz 1:15 2.45 sec
7Kg*2 50Hz 1:15 2.91 sec
60Hz 1:15 2.45 sec
8Kg*2 50Hz 1:15 2.91 sec
60Hz 1:20 3.27 sec
Tool Weight
Bilateral Loading of Tools
Motor Frequency Compatible with
1 HP motors
ATC Time Interval
For Cutter
4Kg*2 50Hz 1:12 2.33 sec
60Hz 1:15 2.45 sec
5Kg*2 50Hz 1:15 2.91 sec
60Hz 1:15 2.45 sec
6Kg*2 50Hz 1:15 2.91 sec
60Hz 1:20 3.27 sec
7Kg*2 50Hz 1:15 2.91 sec
60Hz 1:20 3.27 sec
8Kg*2 50Hz 1:15 2.91 sec
60Hz 1:20 3.27 sec
Tool Weight
Bilateral Loading of Tools
Motor Frequency Compatible with
1 HP motors
ATC Time Interval
For Cutter
4Kg*2 50Hz 1:15 2.91 sec
60Hz 1:15 2.45 sec
5Kg*2 50Hz 1:15 2.91 sec
60Hz 1:20 3.27 sec
6Kg*2 50Hz 1:15 2.91 sec
60Hz 1:20 3.27 sec
7Kg*2 50Hz 1:15 2.91 sec
60Hz 1:20 3.27 sec
8Kg*2 50Hz 1:15 2.91 sec
60Hz 1:20 3.27 sec
