ATC Systems

Horizontal Tool Change

BT50 Series

A57S In-Advance Tool Lock

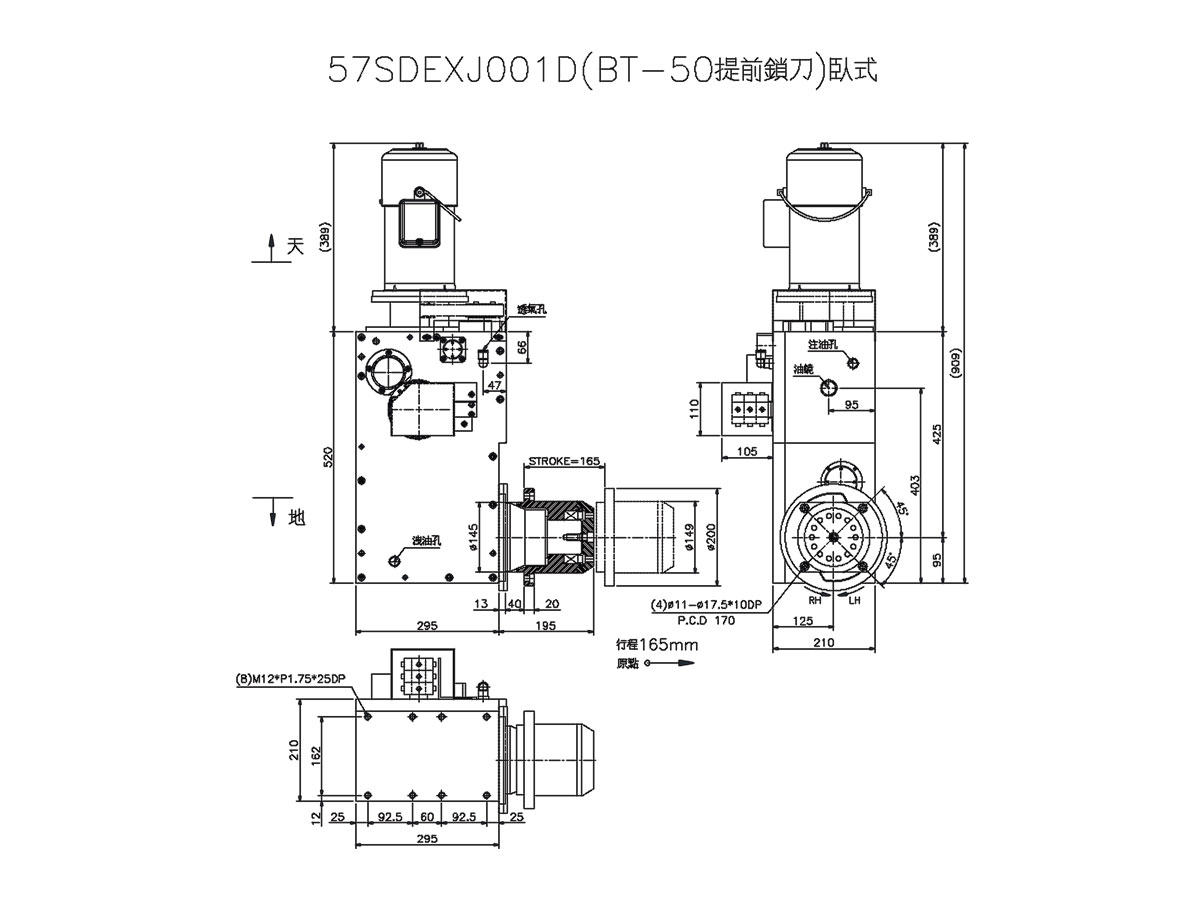

Outline Drawing

renishaw-acu250-r-asis-corrected

ContRoller-Types

Movement Timing Illustration



size-drawings-acu250-en-01

Angle for cutter change can be defined per customer's need (60°~ 90°)

top-view-drawing-acu250-02

We can customize strokes according to different types of tool holders

A57S Instant Loading Diagram

Tool Change Arm T-to-T Distance/ Tool Arm Weight Reference
Tool Weight
Bilateral Loading of Tools
Motor Frequency Belts compatible with
1.5HP
ATC Time Interval
For Cutter
15Kg*2 70Hz 21:30 1.79 sec
20Kg*2 70Hz 21:30 1.79 sec
25Kg*2 60Hz 21:30 2.09 sec
30Kg*2 60Hz 21:30 2.09 sec
35Kg*2 50Hz 21:30 2.51 sec
40Kg*2 50Hz 21:30 2.51 sec
Tool Weight
Bilateral Loading of Tools
Motor Frequency Belts compatible with
1.5HP
ATC Time Interval
For Cutter
15Kg*2 60Hz 21:30 2.09 sec
20Kg*2 60Hz 21:30 2.09 sec
25Kg*2 50Hz 21:30 2.51 sec
30Kg*2 50Hz 21:30 2.51 sec
35Kg*2 40Hz 21:30 3.14 sec
40Kg*2 40Hz 21:30 3.14 sec
Tool Weight
Bilateral Loading of Tools
Motor Frequency Belts compatible with
1.5HP
ATC Time Interval
For Cutter
15Kg*2 50Hz 21:30 2.51 sec
20Kg*2 50Hz 21:30 2.51 sec
25Kg*2 40Hz 21:30 3.14 sec
30Kg*2 40Hz 21:30 3.14 sec
Tool Weight
Bilateral Loading of Tools
Motor Frequency Belts compatible with
1.5HP
ATC Time Interval
For Cutter
15Kg*2 50Hz 21:30 2.51 sec
20Kg*2 40Hz 21:30 3.14 sec
25Kg*2 40Hz 21:30 3.14 sec
Tool Weight
Bilateral Loading of Tools
Motor Frequency Belts compatible with
1.5HP
ATC Time Interval
For Cutter
15Kg*2 50Hz 21:30 2.51 sec
20Kg*2 40Hz 21:30 3.14 sec
25Kg*2 40Hz 21:30 3.14 sec
Tool Weight
Bilateral Loading of Tools
Motor Frequency Belts compatible with
1.5HP
ATC Time Interval
For Cutter
15Kg*2 40Hz 21:30 3.14 sec
20Kg*2 40Hz 21:30 3.14 sec
Tool Weight
Bilateral Loading of Tools
Motor Frequency Belts compatible with
1.5HP
ATC Time Interval
For Cutter
15Kg*2 40Hz 21:30 3.14 sec
20Kg*2 40Hz 21:30 3.14 sec
